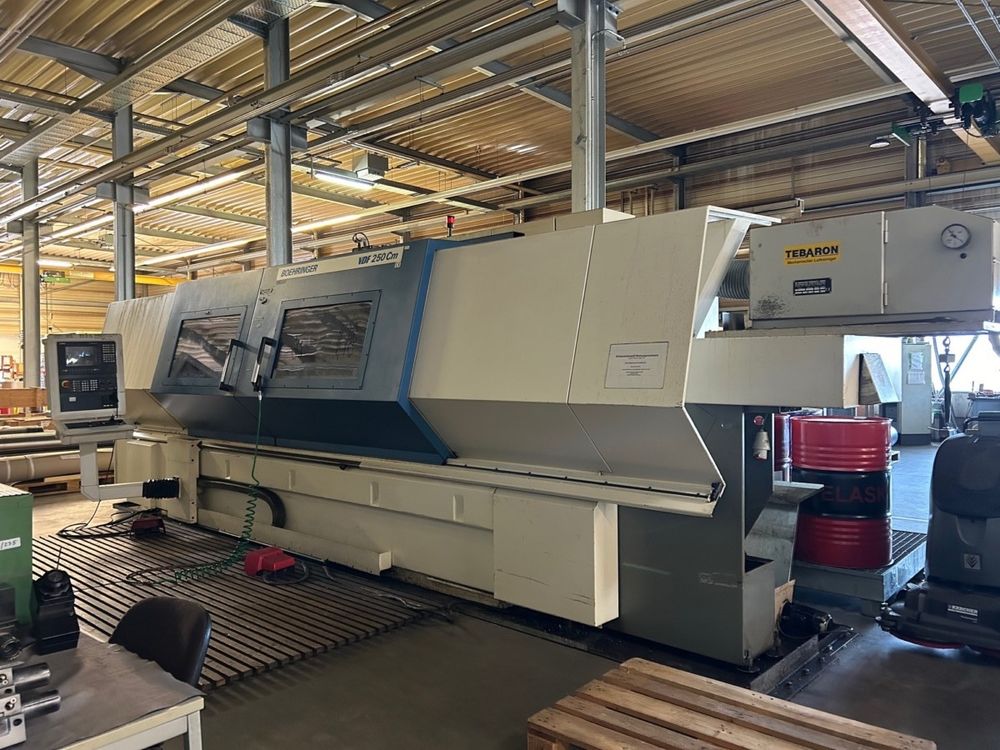

VDF Boehringer SINUMERIK 840 D 3000 rpm 250 CM 3 Axis

X-axis: controlled
Z-axis: controlled
C-axis speed range: 0–20 rpm
C-axis max angle specification: 9999.999°
Control: SINUMERIK 840 D

Rotation diameter over bed: 520 mm
Turning diameter over bed slide: 480 mm
Tool carrier with 12 cylindrical shank holders Ø 50 mm
Main drive type: 1-stage AC
Main drive power (50% ED): 53 kW
Main spindle speed range: 30–3000 rpm
Main spindle head size: 8

Driven tool positions: 6
Driven tool power (60% ED): 6 kW
Driven tool speed range: 20–2500 rpm
Driven tool gear stages: 2

Chuck type: POWER CHUCK 3 NHF 315-82 A8
Chuck manufacturer: FORKARDT
Chuck outer diameter: 315 mm
Chuck bore diameter: 82 mm
Rod material max diameter: 63 mm

Chuck features: centrifugal force compensation, hard top jaws ground
Included: draw tube and attachment
Clamping door for clamping devices
Chip conveyor
Three-dimension length: 3000 mm
