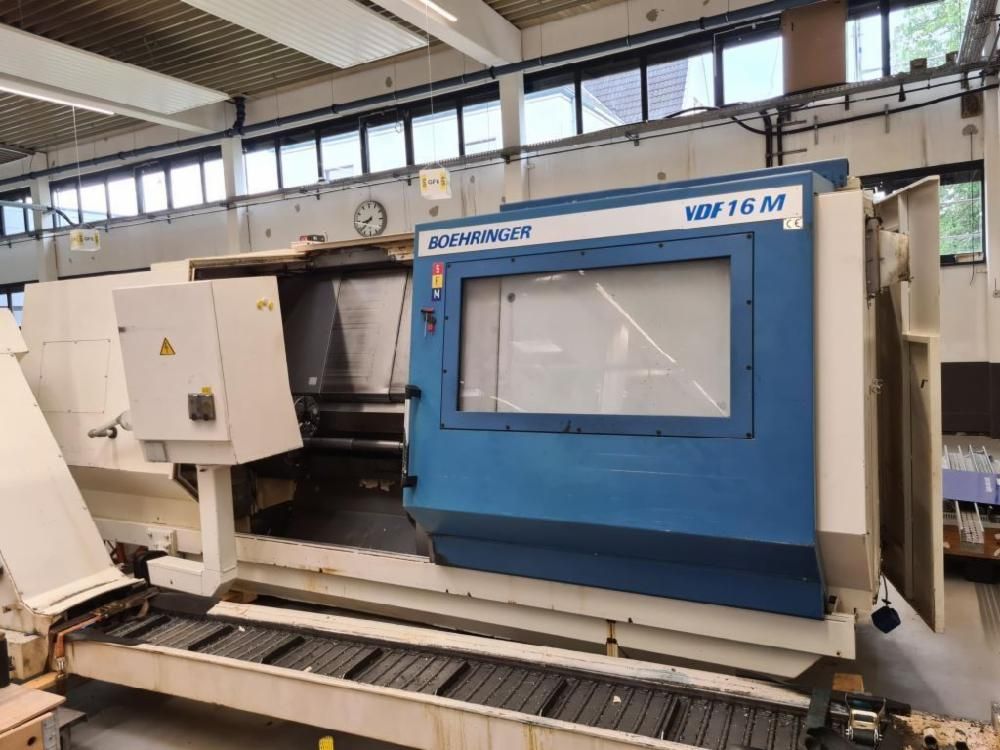

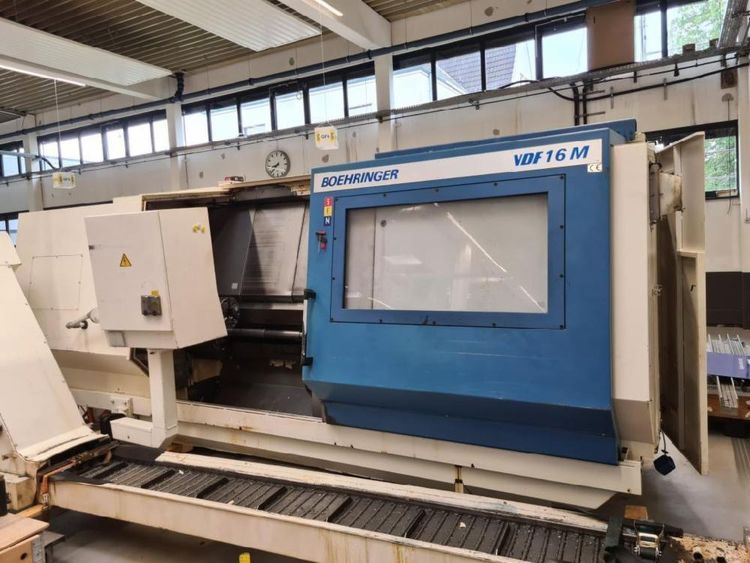

VDF Control Sinumerik 840 C 6000 rpm 16 M 2 Axis
Ref :
2747687-3-CP
Condition :
Used
Manufacturer :
VDF
Controller :
Control Sinumerik 840 C
Spindle Speed :
6000 rpm
Model :
16 M
Nb Of Axis :
2 Axis
Year(s) :
1997
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X travel 1000 mm
Swing over bed 520 mm
Swing over support 285 mm
2 turrets with 12 stations each
Lower turret 12 stations, 6 driven, 4 kW, speeds up to 6000 rpm
Upper turret 12 stations, 6 driven, 4 kW, speeds up to 6000 rpm
NC controlled tailstock
C axis for main spindle
Power chuck 200 mm diameter
Spindle bore 78 mm
Drive power 53 kW
Chip conveyor
