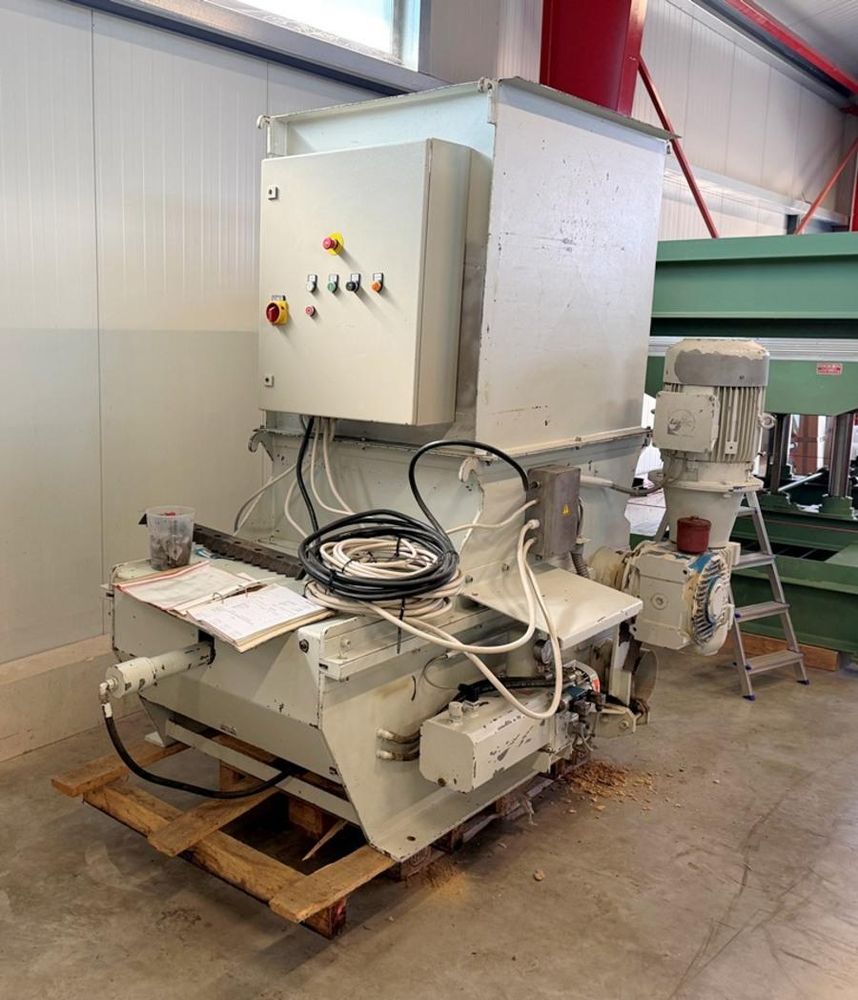

Vecoplan VAZ 100/80 U40

Single-shaft shredder Used
3861 operating hours
The waste shredder VAZ 100/80 is designed for shredding wood waste, pallets, crates, particleboard and fiberboard, paper and cardboard, plastics, etc.
The machine is most commonly used to produce fuel chips from wood waste, wood scraps, and pallets.
Feed opening 1000 x 800 mm LW
Universal rotor, tool size 40
Connected load 13 kW, drive power 11 kW
Throughput capacity for logs 250 - 350 kg/h
Throughput capacity for particleboard 800 - 1000 kg/h
Screen hole size (diameter) 25 mm
Rotor diameter 235 mm, rotor width 794 mm, speed 95 rpm
Rotor mounted in self-aligning roller bearings with steel housing
Feed unit made of channel steel, driven by hydraulic cylinders
Guided in brass rails, with rollers on the sides
Main drive via gear motor with two-stage worm gear
Motor speed 95 rpm
Automatic foreign object breakage protection
PLC control, automatic mode / manual mode
Hydraulic unit with 2 operating speeds

2 suction connections on the sides, 200 mm each
Currently, the machine is designed so that the wood chips fall downward.
If the opening at the bottom is closed, an extraction system could be connected.
Includes 1 new counter blade, various cutting blades, complete technical documentation
Transport dimensions approx. 2500 x 1500 x 2500 mm LWH
Weight approx. 1500 kg
