Vecoplan VAZ 1300 S SP

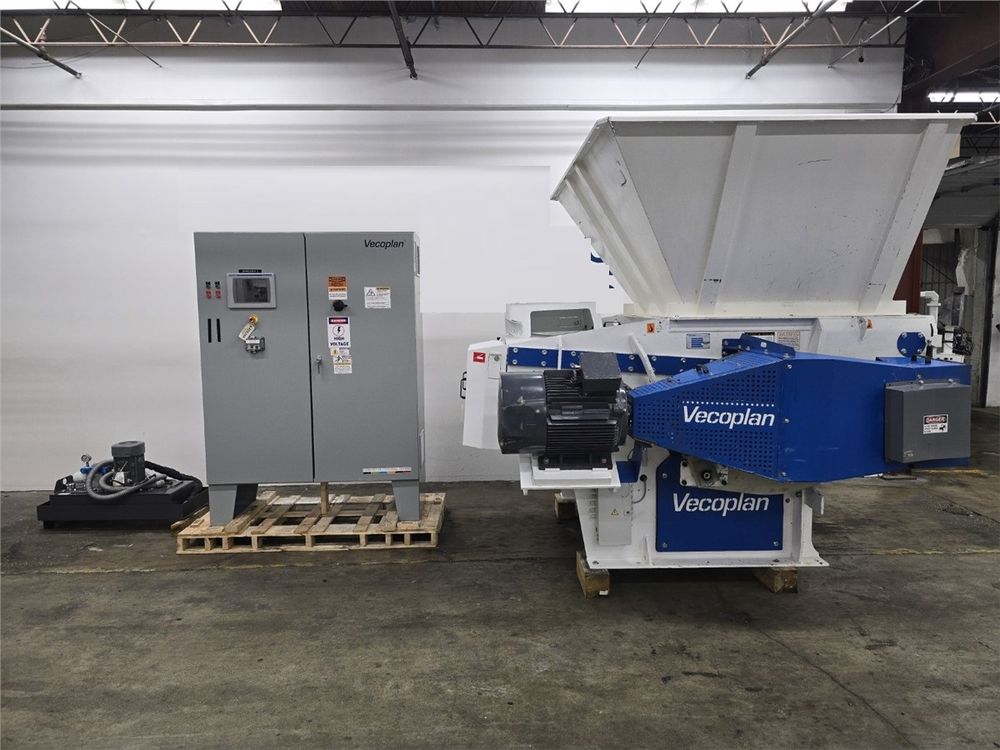

52" Wide Vecoplan VAZ 1300 S-SP “Shorty” Single-Shaft Shredder,
65 HP, New In 2014
15" Diameter Rotor
48" Long Chamber
142 RPM Rotor Speed
65 HP AC Motor
460/3/60, 83.7A
Motor RPM: 1770 RPM
V-belt Gearbox Drive with Turbo Clutch
12.31:1 Gear Ratio
5 HP Hydraulic Ram Feed System, Hydraulic Ram Pressure Up To 2,610 PSI
2" Screen Installed
With Electrical Control Cabinet And Hopper
Approximate Shredder Dimensions: 114" x 96" x 60"
Approximate Hopper Dimensions: 100" x 76.5" x 40"
Approximate Cabinet Dimensions: 60" x 24" x 88"
Approximate Hydraulic Unit Dimensions: 48" x 20" x 22"
