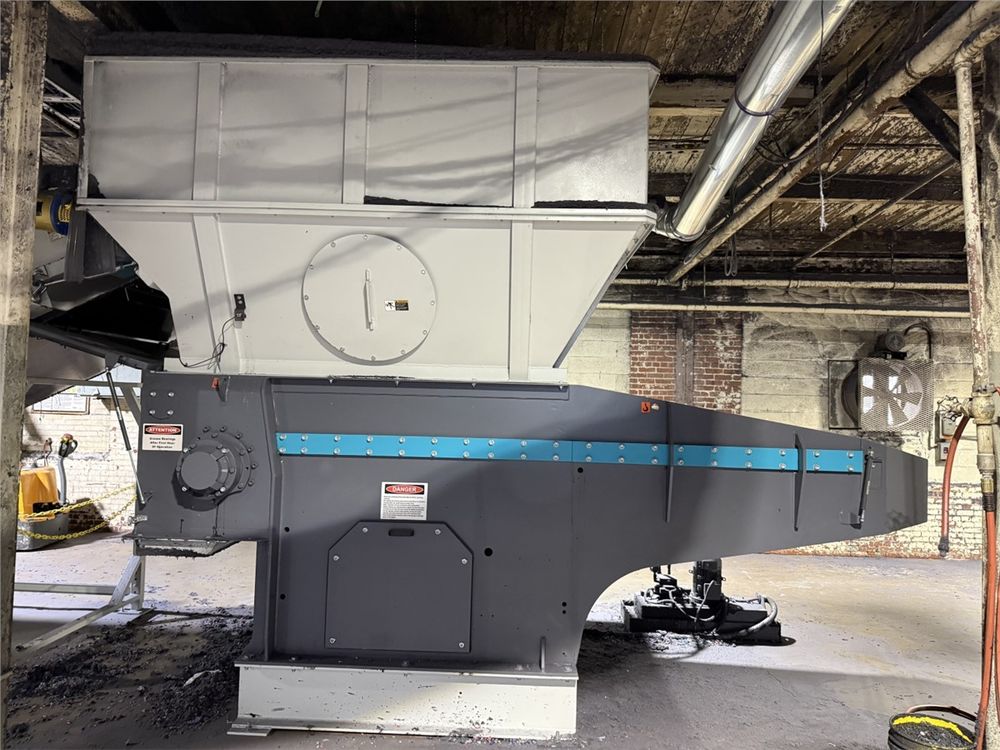

Vecoplan VAZ-1600-M-FF V-5552 Single Shaft Shredder

62" Vecoplan Model VAZ-1600-M-FF V-5552 Shredder/Cutter
New in 2022/Installed 2024, ONLY 1,651 Hours
62” X 80” Hopper Opening
6.4 Cubic Yard Hopper Volume
20” Rotor Diameter, 72 Cutters
63" Rotor Length
145 RPM Rotor Speed
150 HP Electric Motor with Jointed Shaft, Turbo Clutch, and Conical Spur Gears
Motor Specs: 460/3/60, 158.7A, IP55, 1780 RPM
Cardan Shaft Drive
Double Sidewalls
Reversible Counter Knives, Externally Adjustable Counter Knives
Hydraulic Swing-Up Screen Carriages, Rotatable Screens
PLC Controls, Overload Control Using Limit Switches That Shut Machine Off During Sudden Load And Displays Warning Message On Cabinet
Drive Motor Has PTC Resistor Protection To Reduce Burn Out Risk From Overload
SPS Control Monitors Operation For Throughput And Conservative Operation
With Vecoplan Infeed Conveyor, Currently Has 2" Screen
Has Spare Cutters
Total Amps 170.78, Voltage 460

Dimensions:
169" Overall Length
103" Overall Width
15,000 lbs Shredder Weight
60" Wide Conveyor
20' Approximate Length
