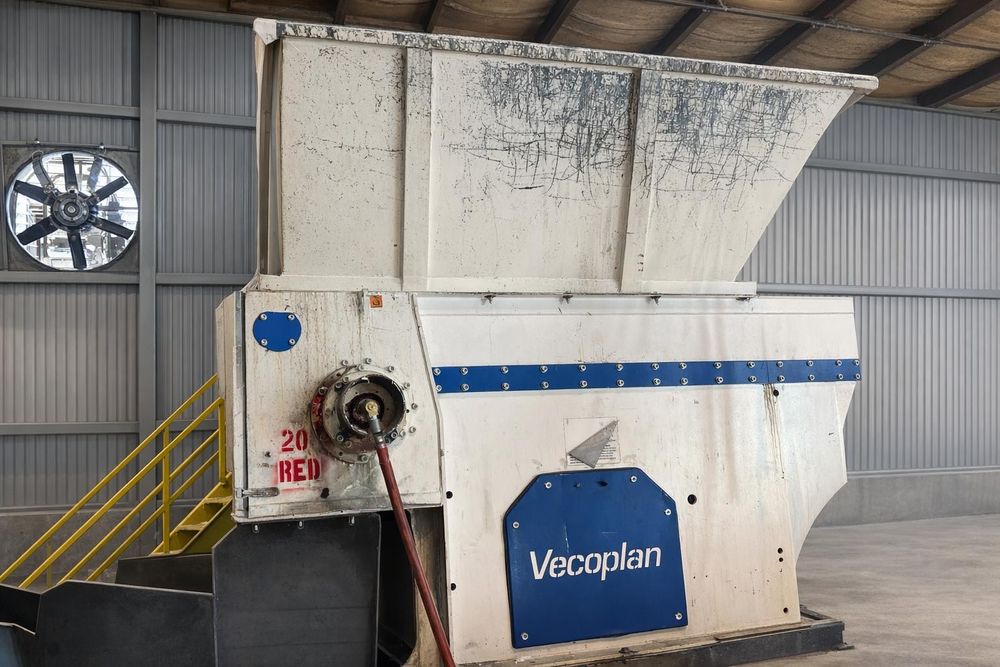

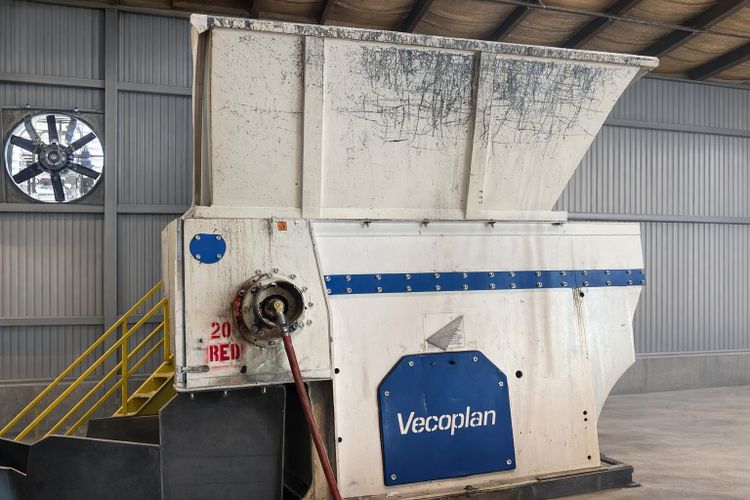

Vecoplan VAZ1600-M-FF (Film & Fiber) Single Shaft Shredder

With Heavy Duty 5/8″ thick screen with 44 holes
1 spare set of “new” Bed Knives
63″ wide x 80″ long ram dimension with abrasion resistant top plate
15″ diameter, 63″ long, solid stub-shaft design with Interchangeable rotor profiles
to High Production Profile if required at a later date
High manganese content for abrasion resistance
Double-walled cutting chamber to prevent bearing contamination or sidewall wear
5.5 – 6.5 cubic yard capacity
PLC controlled, VFD speed & dual pressure hydraulic ram, external ram guides
for bridge-free interior and simplified maintenance
Fully surrounded chamber, spring-loaded wipers for even wear
4″, reversible, zero-tolerance to prevent material wrapping
107 total cutting tools – 72 primary – fully supported, 4-way indexable,
hardened compound, concave profile cutters, 35 auxillary nip cutters
135 RPM, driveshaft power transfer to fluid clutch and solid-case reducer
150 HP, TEFC, 460/3/60, programmable Allen Bradley soft-start unit
Allen Bradley controls package with touch-panel display interface
This machine is fitted with Vecoplan’s excluslve double sidewall construction
with rotating rotor end discs. These features are designed to
eliminate frictional heat generation and sidewall wear from processing material
rubbing against the inner cutting chamber sidewalls.
Additionally, this design eliminates the possibility
of bearing contamination.
This unit incorporates Vecoplan’s patented SureCut FIim and
Fiber processing package. Included in this package is a rotor, bedknife and
screen configuration designed to process standard materials as
well as fibrous scrap and film.
This package is designed to eliminate material wrapping and screen blockage.
Pre-channeled rotor and bearing housings are included (plumbing optional)
VAZ machine frame
Driveshaft power transfer
Individually adjustable and reversible bedknife sections (6 sections)
