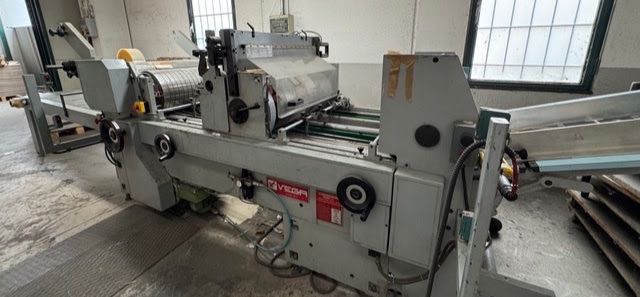

Vega FINESTER 82G

WINDOW PATCHING MACHINE
Window gluer and applicator on 180-500 g/m² firm cardboard
Blank length: Single lane max. 1050 / min. 120 - Double lane max. 1050 / min. 120
Blank width: Single lane max. 820 / min. 80 - Double lane max. 370 / min. 80
Film cutting length: Single lane max. 690 / min. 50 - Double lane max. 690 / min. 50
Film width: Single lane max. 700 / min. 30 - Double lane max. 420 / min. 30

Machine complete with:
2-lane rotary disc sheet feeder
Double "DUPLEX" lane with 4 infeed wheels and 4 feed rollers 2 pairs of chains, one blank for each pair of chains
Additional film reel support for the double lane
Carton supports underneath the gluing unit with pneumatic/automatic shutdown in the event of a missed pass
Modular gluing unit with 3 gluing cylinders and 3 trays with continuous rotation of the cylinders in the event of machine downtime
Rubber dies on PVC sheets and easily applied to the cylinder
Electronically adjustable cutting length of the transparent film
Suction-blowing cylinder for applying windows on the carton
Suction-blowing blade holder cylinder for easier cutting even on static-charged films

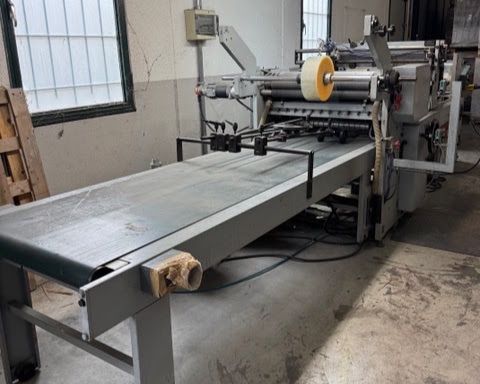

Unloading belt independent of the machine, equipped with a variable-speed motor and a reducer for adjusting the belt height.
Two vacuum pumps for the VACUUM cylinder
Pneumatic system connectable to the centralized system
380 Volt electrical system - 3 phases - 50 Hz
Side safety microswitches on the glue and coupling unit
CE-compliant electrical cabinet with control equipment
Control panel with hourly production display, total production, and control buttons
Safety device with barrier photocell

Total power required - 17 kW cc
Compressed air 4 bar
Coil diameter: INT.: 45/75 - EXT.: 450 max

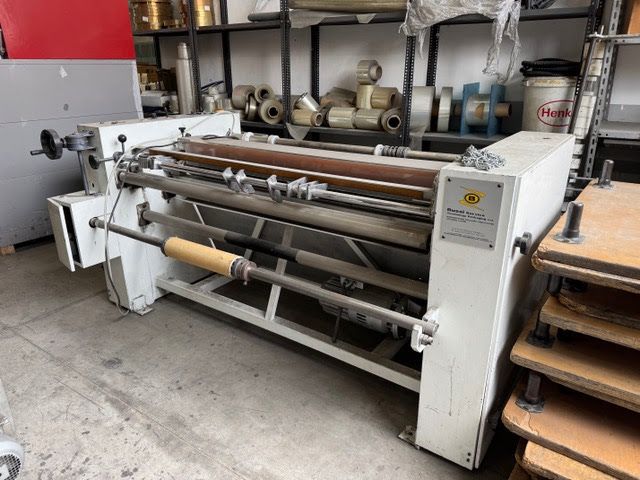

Complete with machines for cutting to size and rewinding the coils.
GOOD general condition
