Vemag Robot 500, Filler

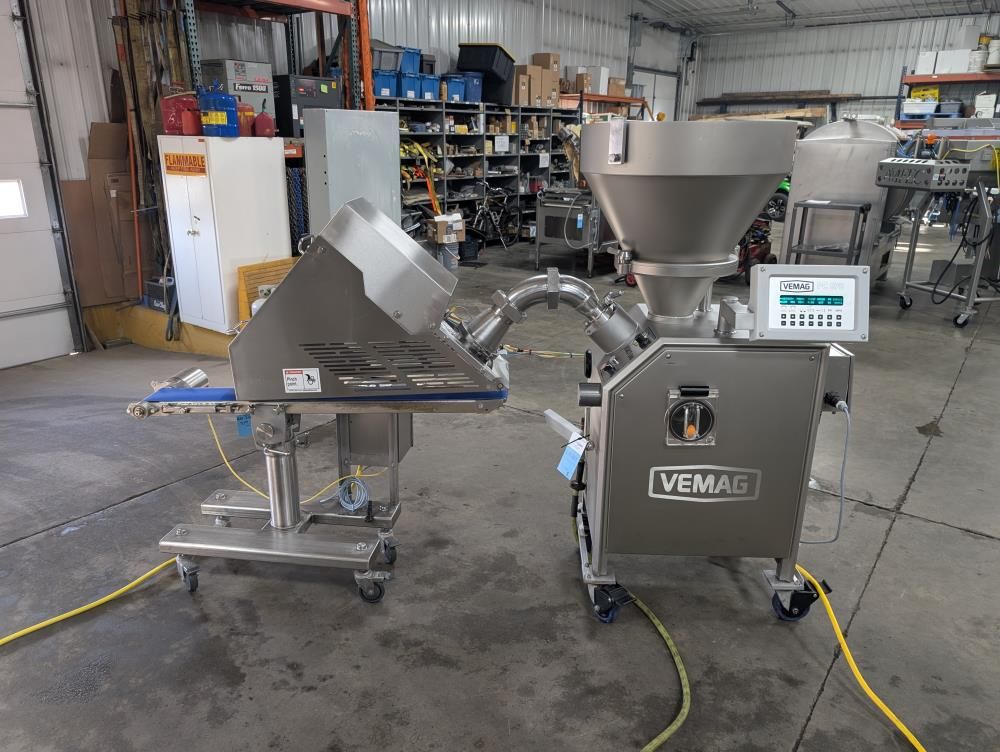

Vemag Robot 500 with Wirecut and Conveyor

Vemag Robot 500 Filler
Model: Robot 500
Stainless steel hopper: 26 in. diameter x 6 in. straight side x 10 in. cone
Hopper infeed height: 68 inches
Discharge horn: 4 in. diameter
Carbon steel screws
Control system: Vemag PC878 with new motherboard

Wirecut System
Pneumatic wirecut mechanism
Includes 6-inch diameter inserts for various product types

Discharge Conveyor
Length: 53 inches
Width: 6 inches
Height: 34 inches (adjustable)
Discharge angle for optimized product handling
Stainless steel frame on locking casters

Utilities
Electrical: 220–240 Volt, 3 Phase, 60 Hz, 23 Amp
Air: 110 liters/min at 5–6 bar

Overall Dimensions & Weights
Vemag Unit: 42 in. L x 36 in. W x 68 in. H – Approx. lbs
Conveyor: 54 in. L x 27 in. W x 44 in. H – Approx. lbs
Parts Pallet: 48 in. L x 42 in. W x 24 in. H – Approx. lbs
