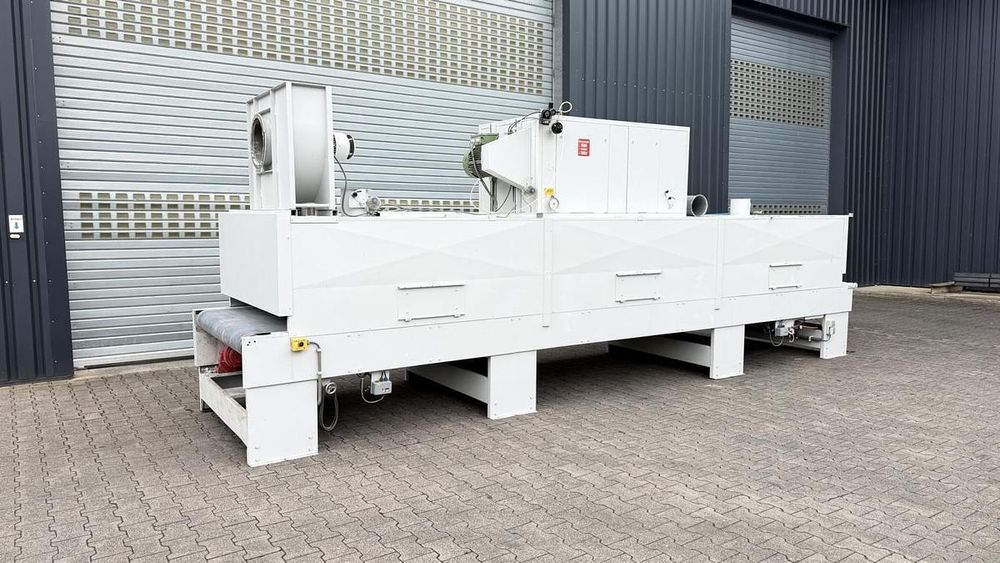

Venjakob VEN DRY DTK 040

- used machine
- Working width 1,300 mm
- Working height 880 + - 20 mm
- Max. part height ~ 80 mm (Optional more)
- Length of nozzle drying channel 6,000 mm
- Air velocity 25 m/s
- Max. recirculated air volume flow 7,400 m³/h
- Min. intake air 900 m³/h
- Minimum exhaust air volume flow 900 m³/h
- Max. drying temperature ~ 50 degrees
- Heating capacity 57.2 kW
- Air velocity max. 23 m/s
- with heat exchanger, heating water PWW 90/70°C
- belt transport 6,500 mm
- Feed rate continuously adjustable approx. 3.0 - 7.0 m/min
- Volts, Hz 400 / 50
- Electric connection 10 kW (4.6+1.5 kW)
- Voltage fluctuations max. +/- 5 %
- Without control valves and water pumps
