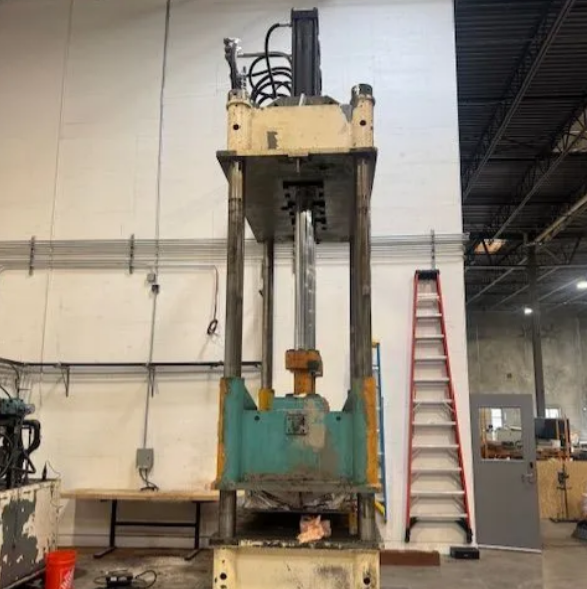

Verson 200-HD2-72-4P Presses

CAPACITY 200 TONS
MAX. STROKE 54" DAYLIGHT TO BED 26" MIN - 80"
MAX BED AREA APPROX. 86" X 54" (RL X FB)
DISTANCE BETWEEN POST 74" X 32" (RL X FB)
USABLE BED & RAM AREA 74" X 54" (RL X FB)
CYLINDER SIZE TWO 7" DIA. CYLINDERS

Modification:
CYLINDER SIZE THREE 8"
DIA. CYLINDERS ROD SIZES TWO 5.5"
DIA. RODS

Modification:
ROD SIZES THREE 5.5"
DIA. RODS POST SIZE 5.5"
DIA. FLOOR TO BED 36"
PRESS CONTROLS VERSON CONTROLS

Modification
PRESS CONTROLS MODIFIED ELECTROMECHANICAL HYDRAULICS
ABEX DENISON HYDRAULIC PUMP
PARKER VALVE D63W1B44Y ELECTRICS 25 HP LINCGUARD LINCOLN MOTOR

Modification:
• 480V - 3PH - 60HZ | 37.7 AMP - -- -hydraulic pump and reservoir have been
removed from the crown and placed on the ground adjacent to the press.
The hydraulic pump system and press systems are now effectively separate,
connected systems.
