Victor Fanuc 0i-TC Control. 2500 rpm. VTURN 40/220 CNC Lathe with 2 Axis

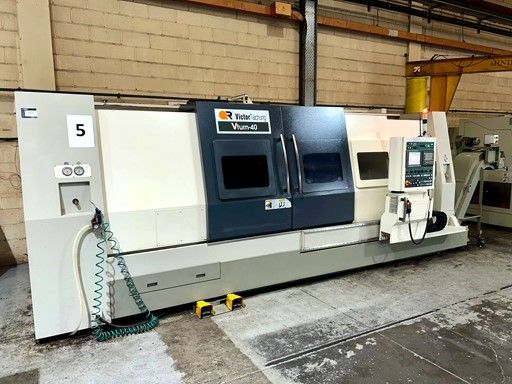

VICTOR VTURN 40/220 CNC Lathe with
Fanuc 0i-TC Control.
Year 2013

Swing over bed 780mm. Standard turning dia. 520mm.
Maximum turning dia. 620mm.
Swing over carriage 620mm.
Distance between centres 2275mm.
X/Z Axis travel 310+30mm/2200mm.
Spindle bore 105mm.
Bar capacity 91mm.
Rapids X/Z 20/20m/min.
X/Z Feed motors 4/7kW.
X/Z Ball screw dia. x pitch 36mm x P8/50mm x P16.
Maximum spindle speed 2500 rpm.
Spindle motor power geared ( Cont/30min/15min) 30/37/45 kW.
Spindle nose A2-11”. 10 station turret.
Tailstock quill dia. 150mm.
Quill stroke 150mm.
Quill taper 5MT.
Total power requirement 50 kVA.
Coolant tank capacity 700 litres.
Machine is fitted with a 381mm dia.
3 jaw powered chuck.
3 point Open Ended Steady 280mm-400mm dia. capacity.

Approximate machine size 7100mm x 2700mm x 2200mm high.
Approximate weight 15,500 kg
Reference ID: 30139
