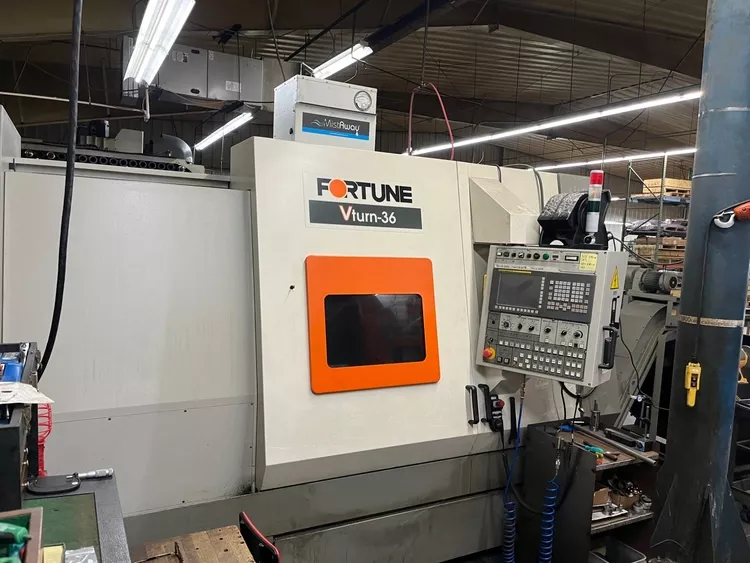

Taichung, Victor FANUC Oi-TF 2,000 rpm Vturn-36 2 Axis

X1 axis travel: 12"
Z1 axis travel: 33.7"
Rapid traverse X1: 472 in/min
Rapid traverse Z1: 590 in/min
Control: FANUC Oi-TF
Bar capacity: 3.5"
Swing over bed: 25.6"
Turning diameter: 17.5"
Machining length: 33.7"
Distance between centers: 35"

Spindle speed: 2,000 rpm
Spindle horsepower: 35 hp
Spindle nose: A2-8
Spindle bore diameter: 4.13"

Chuck size: 15"
Turret configuration: 10 positions

Tailstock quill diameter: 4.33"
Tailstock taper: MT#4
Tailstock quill travel: 3.93"
Tailstock travel: 3.94"

Programmable tailstock: yes
Number of axes: 2
Machine dimensions: 185" x 91" x 90"
Machine weight: 17,850 lb
15" Kitagawa 3-jaw hydraulic chuck
Chip conveyor
Mist collect system
