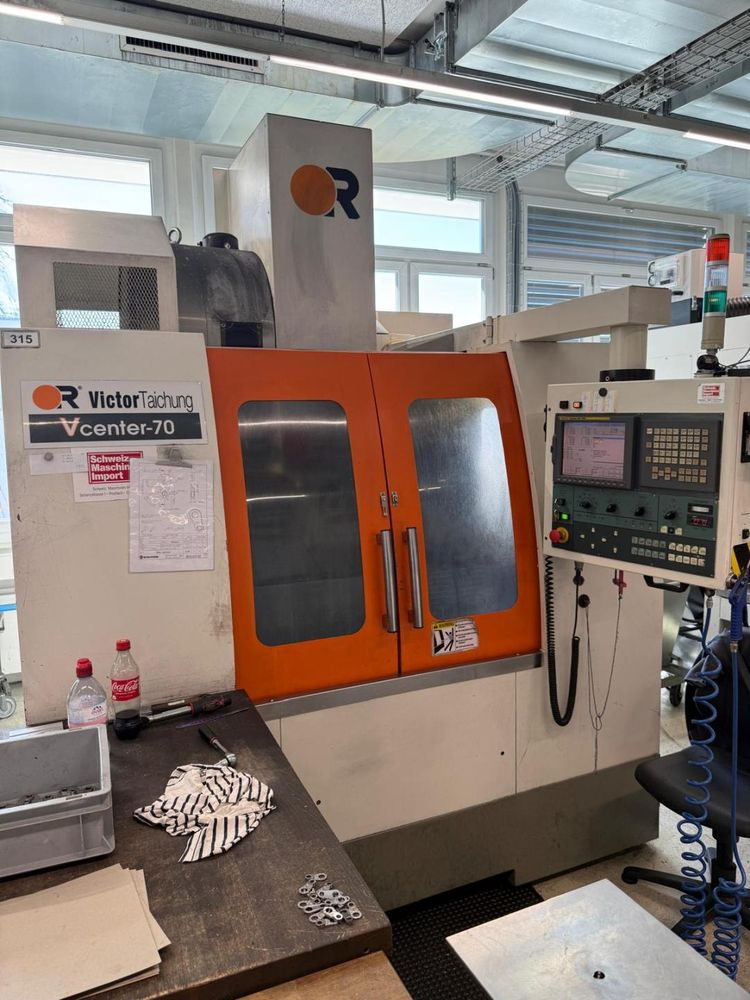

Victor TAICHUNG VCENTER 70 3 Axis
Ref :
2725639-3-GO
Condition :
Used
Manufacturer :
Victor
Model :
TAICHUNG VCENTER 70
Nb Of Axis :
3 Axis
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
VICTOR TAICHUNG VCENTER 70
2007
Control: FANUC 18i-MB
X-axis travel: 700 mm
Y-axis travel: 480 mm
Z-axis travel: 510 mm
Table length: 800 mm
Table width: 460 mm
Table load: 500 kg
Feed rate X-axis: 20000 mm/min
Feed rate Y-axis: 20000 mm/min
Feed rate Z-axis: 20000 mm/min
Spindle taper: ISO 40 / BT / MK
Spindle power: 8 kW
Spindle speed: 8000 RPM
ATC: 24
Coolant through spindle: 20 bar
Controlled axes: 3
Chip conveyor: Yes
Length: 2200 mm
Width: 2300 mm
Height: 2700 mm
Weight: 4100 kg
