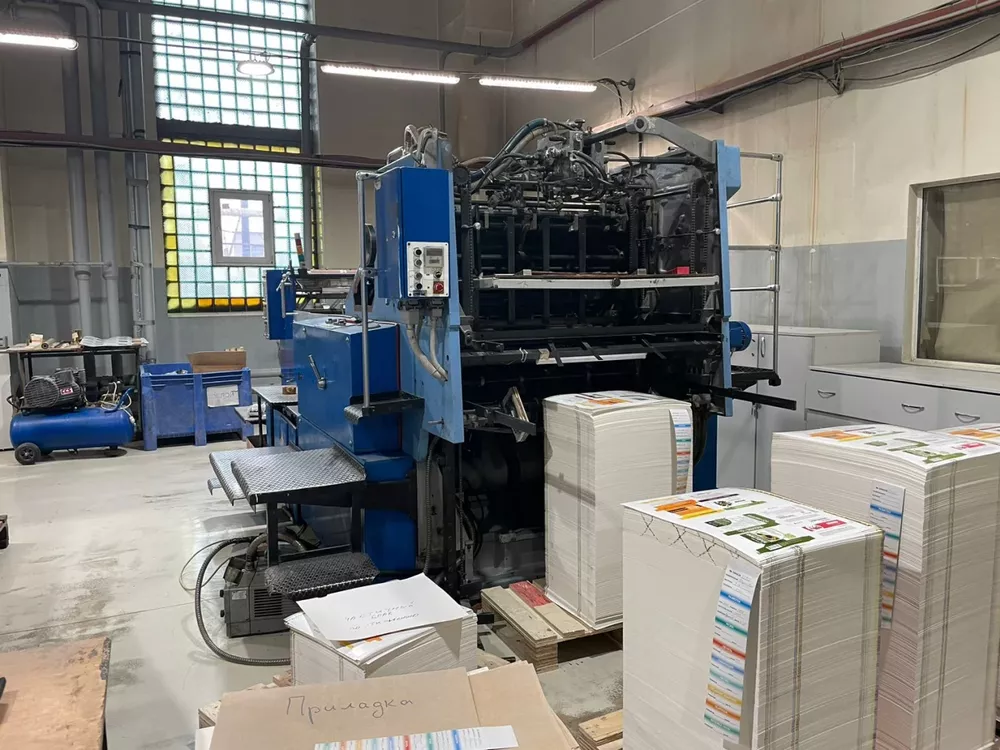

Victoria 1040 Embossing Machine

Paper sheet format, mm maximum 720×1040 minimum 297×420
Size of the closing frame, mm outer 725×1016 inner 725×1000
Speed, cycles/hour maximum 4,000 minimum 1,700
Paper density, g/m2 30…500
Paper stack height (stack height), mm at the feeder 500 at the delivery (output) 710
Paper feed Pneumatic feeder with cascade sheet feed
Speed ​​control Smooth Sheet-by-sheet separation, feeding and alignment of sheets
Automatic output and counting of products
Automatic control of skew, non-feeding and double sheet feeding
Automatic lifting of the feeder stack and lowering of the delivery stack
Automatic Control type Push-button from one station
Foil feeding device: Step-by-step foil feeding mechanism (1-710 mm)
Inner diameter of the core Foil: 17 mm - feed roll, 25 mm - take-up roll
Maximum foil roll diameter: 100 mm (610 m)
Foil roll width: 30 - 1000 mm
Number of foil feed drives: 2
Number of foil feed steps for each drive: 2
Material thickness: 0.08 - 0.45 g / m2
Heating plate: 750 x 1050 mm, with 4 independently controlled heating zones and a digital thermostatic system.
22 mm - distance between hole centers
11 mm - hole diameter
11 mm - distance between the line (along the sheet run) of the centers of the matching holes.
Maximum heating temperature of the plate: 0-220˚С (increment 1 degree)
Maximum height of the metal cliche: 7 mm
Maintenance personnel, 1 person
Power supply 3×380 V, 50 Hz
Total installed power, kW 14.6
Overall dimensions, mm Length 3,870 Width 2,505 Height 2,190
