Viet Challenge 211Arr

Wide Belt Sander Calibrator
Revised machine

Technical specifications:
Professional calibrator with 2 steel/soft short rollers.
Complete with variable speed belt advancement, automatic thickness adjustment, fans,
and pneumatic pressure relief for rollers 1 and 2.

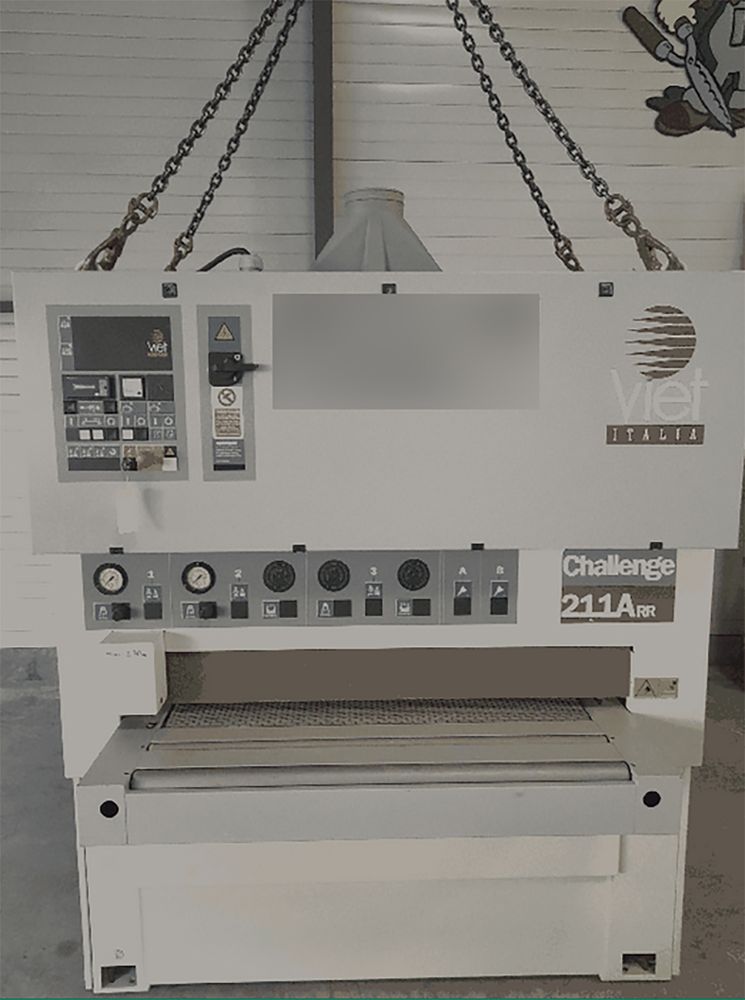

The Viet Challenge 211 calibrator is a machine for smoothing and calibrating wood panels and similar materials.

Here are the machine's main technical specifications:
Maximum working width: 1,100 mm
Maximum panel thickness: 170 mm
2 belts on 300 mm cylinders
Development belts: 1,120 x 2,150 mm
Calibration cylinder motor power: 18.5 kW
Abrasive belt motor power: 11 kW
Belt feed speed: 3 - 18 m/min

The Viet Challenge 211 calibrating machine is suitable for the joinery, carpentry, and furniture industries
that require a highly precise and reliable machine to process large volumes of wood panels.
Dimensions : 180 x 180 x 230 cm (height)
Weight 1600 kg
