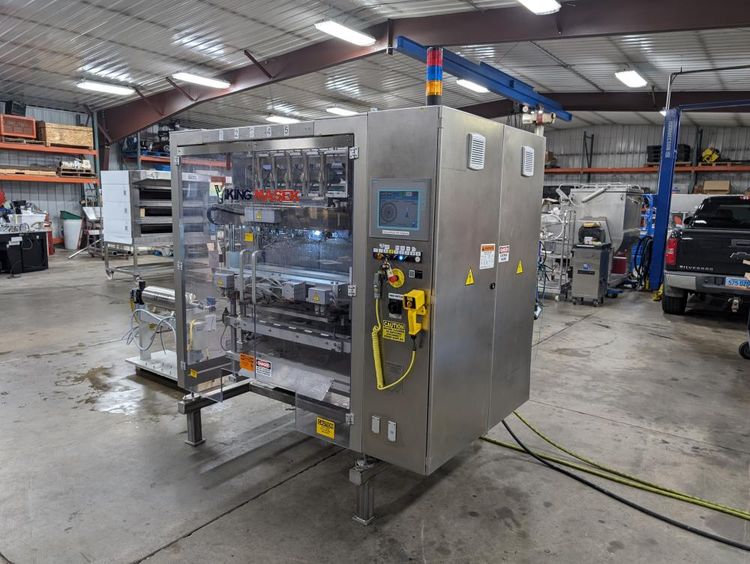

Viking ST800 Stick Pack Machine

Viking Masek ST800 Multilane Stickpack Machine
includes Hibar metering pumps

Max speed: up to 80cpm
Bag width: 17-40mm (upcharge for extended width stick 41-50 mm max with 5mm fin seal)
Bag length 40-200 mm
Some spare parts included.
Viking Masek multilane stickpack machine Features:
Tear notch

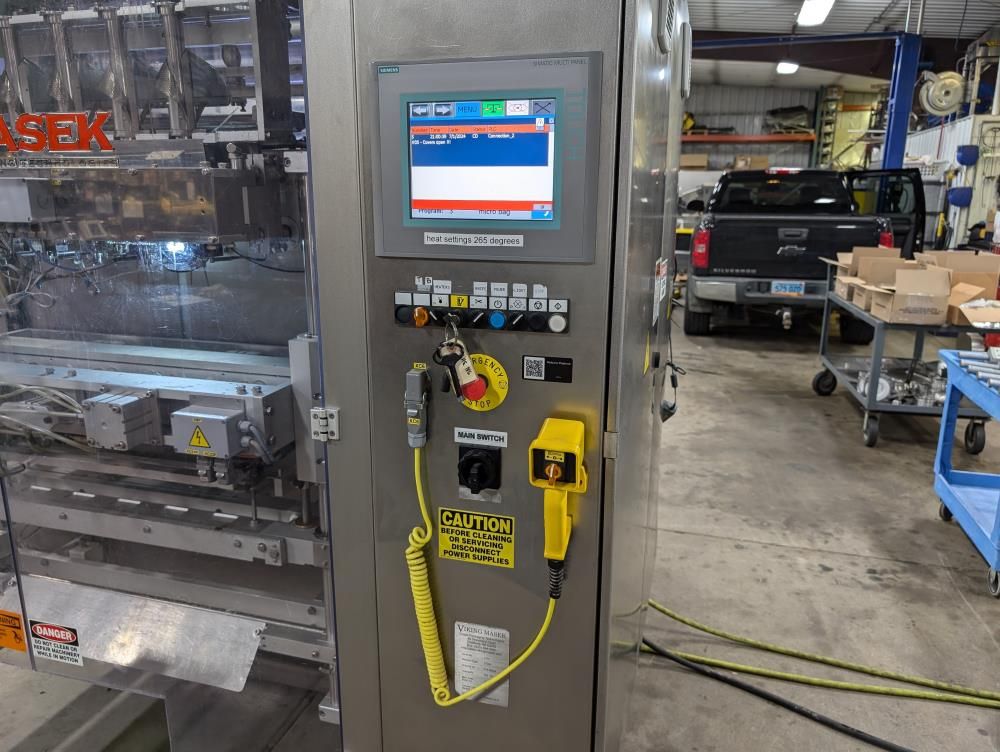

Siemens control system with lightbar indicator

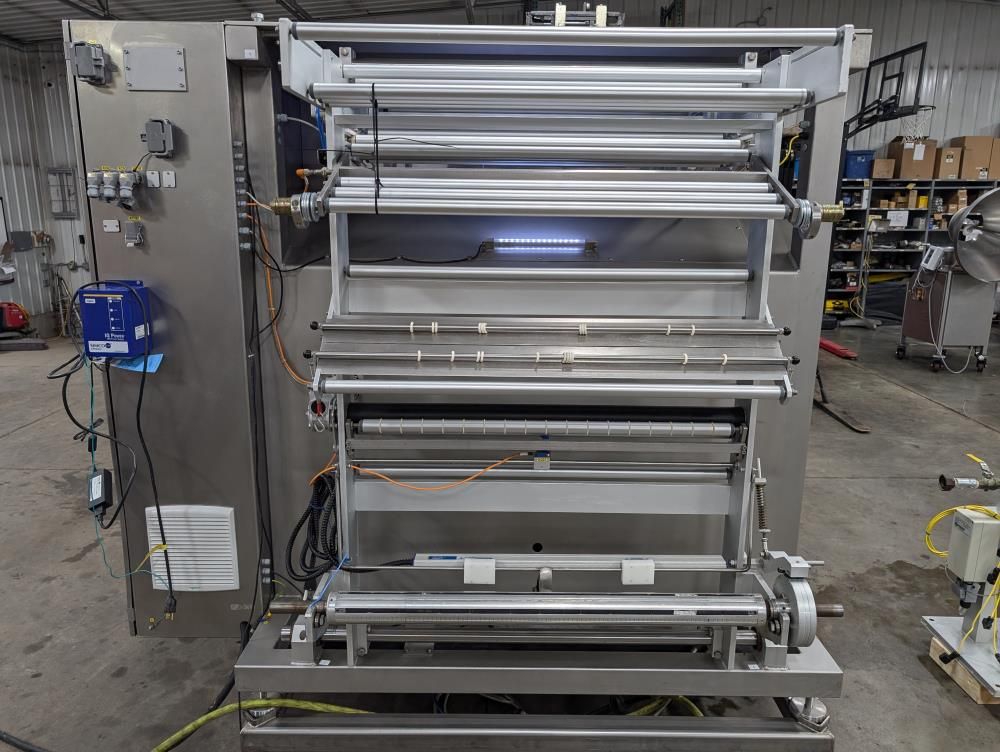

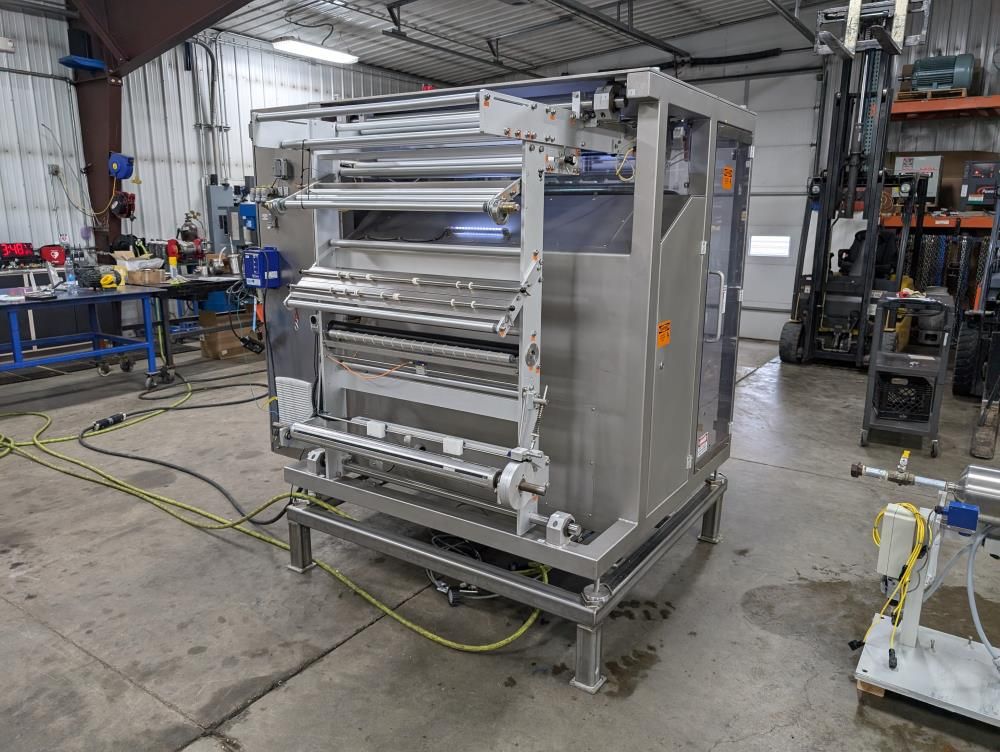

Powered film unwind with film tensions control

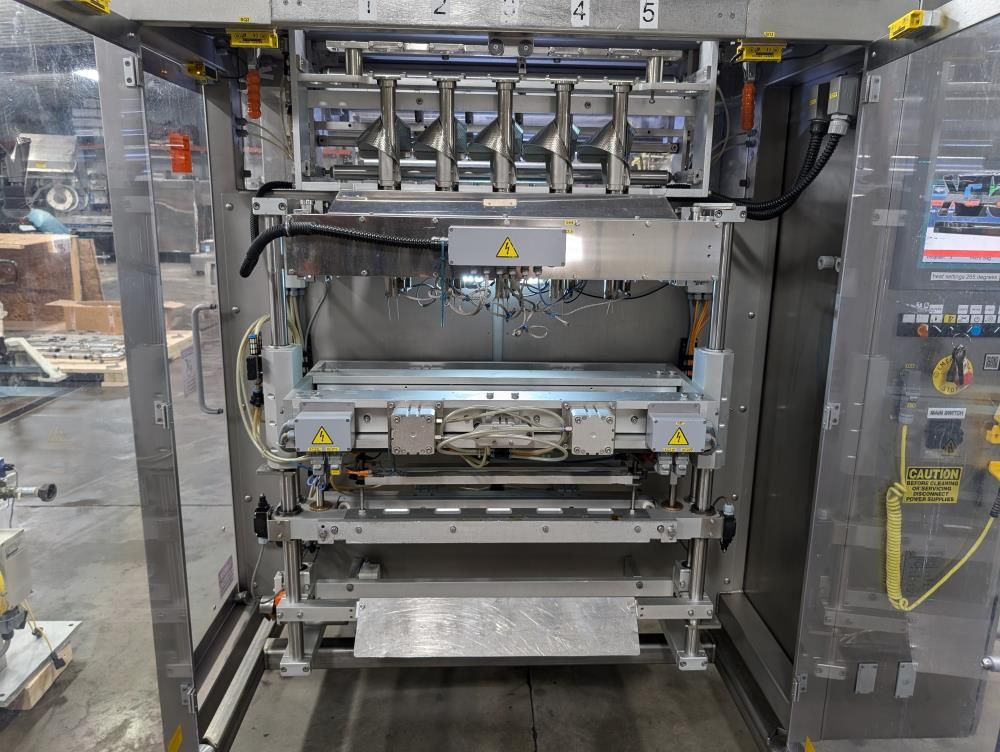

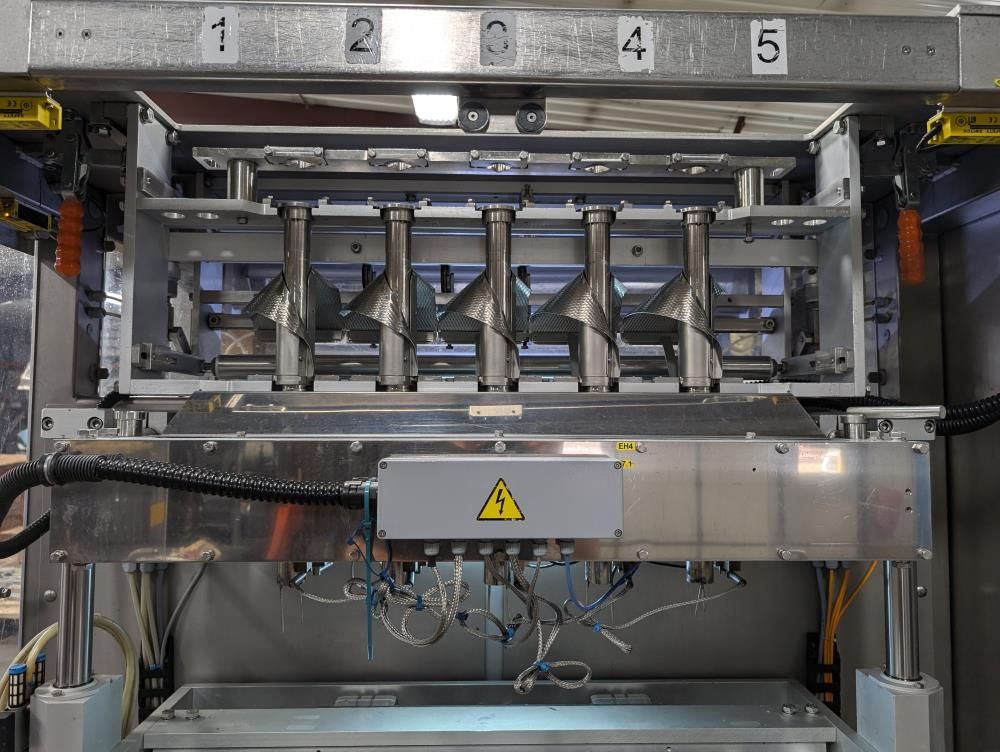

Film slitters and forming tubes
Discharge chutes
Automatic film tracking
GMP construction
Easy change over
Photo eye for bag length control.

Metering Pumps Included
Hibar metering pump: P0646
(2) Additional Hibar pumps: Model 4H4.5
Includes all fittings and clamps previously used

Construction & Support
Stainless steel 12-inch tall stand for the stickpack machine
Some spare parts included
GMP-compliant construction

Power & Air Requirements
Electrical: 480-volt, 3 phase, 60 Hz, 20 amp

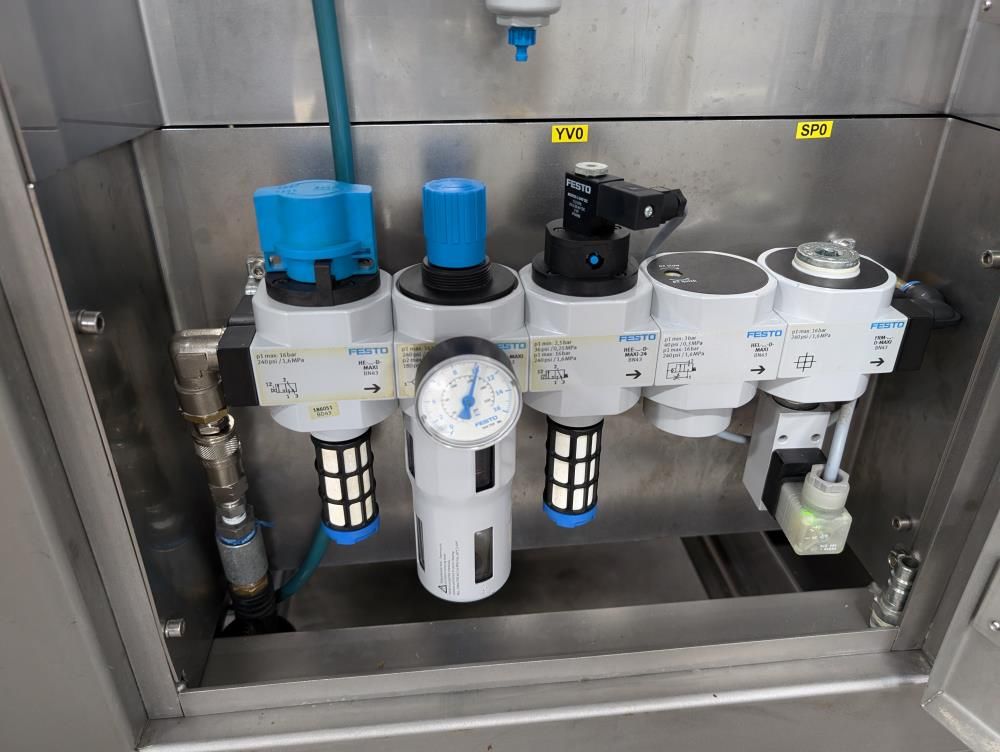

Air: 6 bar, 30 CFM at 90 PSI

Shipping Dimensions
Stickpack machine: 70 in. L x 80 in. W x 91 in. H, approx. 3000 lbs
Parts skid: 83 in. L x 60 in. W x 60 in. H, approx. 1500 lbs
