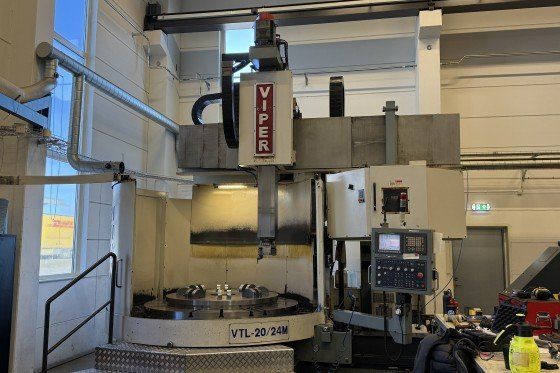

Viper VTL 20/24 M Max turning diameter: 2400 mm

Ref : 2726409-3-GO

Condition : Used

Manufacturer : Viper

Model : VTL 20/24 M

Short Description : Max turning diameter: 2400 mm

Year(s) : 2008

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

VIPER VTL 20/24 M
2008

Control: Fanuc Oi-TD
Max turning diameter: 2400 mm
Table diameter: 2000 mm
Max turning height: 1500 mm
X stroke: 1835 mm
Z stroke: 1000 mm
Crossrail stroke: 800 mm
Crossrail stroke steps: 5 steps each 200 mm
Ram size: 230 x 230 mm
Table load: 20 tons
Spindle speeds: 200 RPM
Spindle power: 48 kW
Live tools speed: 2000 RPM
Live tools power: 15 kW
Tool changer capacity: 18 stations
Max tool length: 450 mm
Tool taper: BT50 BIG PLUS
C-axis: 360000° full
Chip conveyor new in 2025
Table bearing replaced in 2020
Ram bearing replaced in 2020
Under power in aerospace precision plant
Estimated machine length: 9300 mm
Estimated machine width: 6300 mm
Estimated machine height: 6700 mm
Estimated weight: 48000 kg
