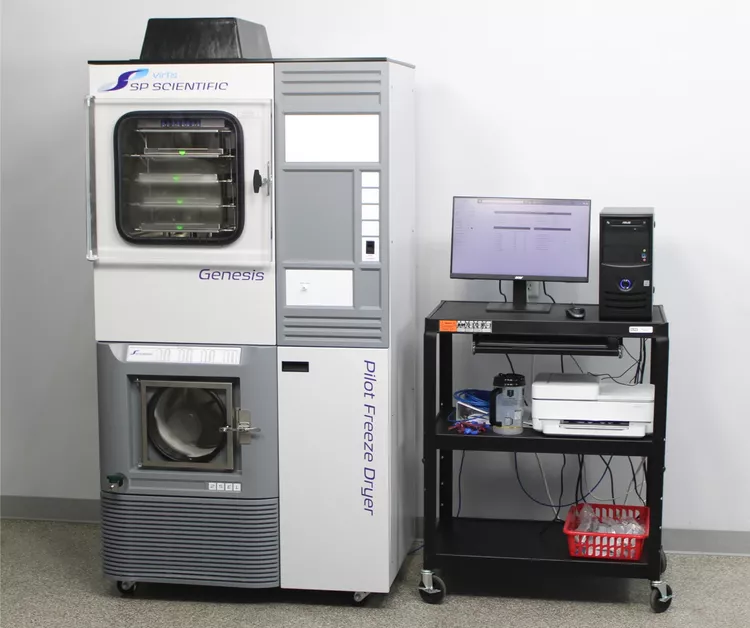

VirTis Genesis 25 EL Pilot Stoppering Shelf Freeze Dryer/Lyophilizer

with LyoS 2.0
Lowest shelf temeparture (50Hz/60Hz) ≤ -67°C / -70°C
Shelf temperature control range -55°C to 65°C
Shelf pull-down from 20°C to -40°C ≤ 30 minutes
Lowest condenser temperature (50Hz/60Hz)
≤ -82°C / -85°C
Maximum condenser capacity ≥ 25 L
Condenser surface area 506 in2 (3,264 cm2)
Condenser pull-down from 20°C to -45°C ≤ 25 minutes
Maximum ice condensing capacity in 24 hours ≥ 12 L
Maximum deposition rate ≥ 0.5 L/hour
Number of compressors 2
Compressor horsepower 1 hp, 1 hp
Vacuum time to 100 millitorr ≤ 20 minutes
Vacuum rate of rise ≤ 30 mT/hour
Volume-based leak rate ≤ .0016 mbar⦁L/sec
Lowest system vacuum ≤ 15 mT
Temperature uniformity ± 1.0°C
Dimension (W x D x H) 40 x 30 x 79.3 in (102 x 76 x 201.4 cm)
Weight 800 lb (362.9 kg)
Minimum clearance of all sides 10 in (25 cm)
