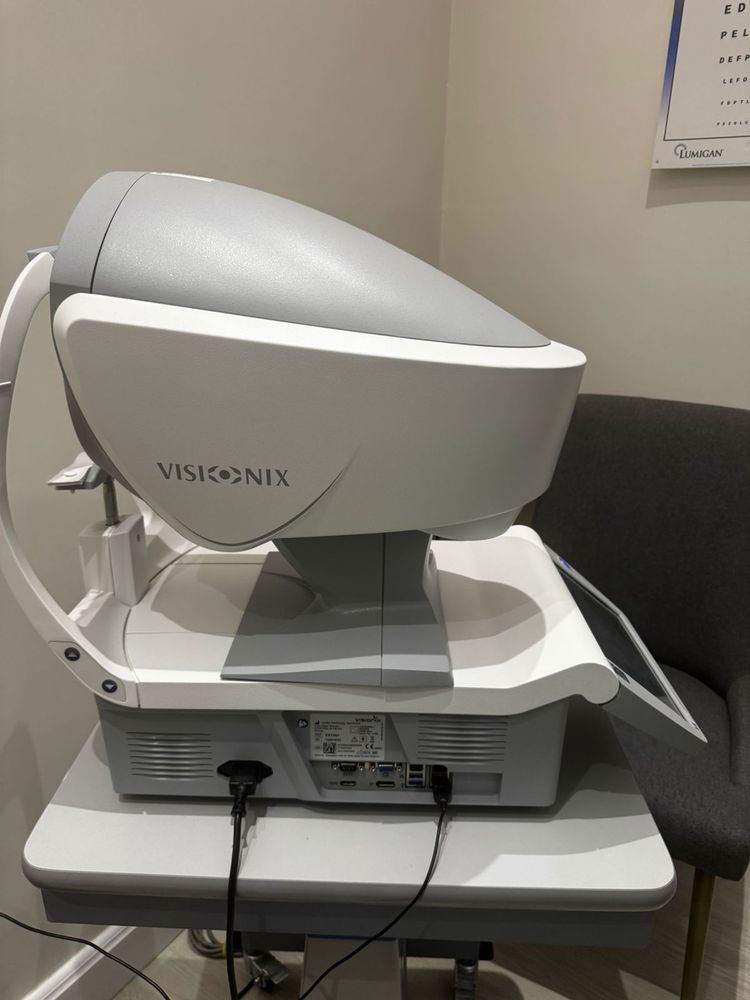

Visionix VX-120+

Pre-owned
ARK / Aberrometer / Pachymeter/ Corneal Topographer /
NCT/ Dry Eye
Manufactured in 2022
Perfect working condition

Height 570 mm
Width 312 mm
Depth 530 mm
Weight 25 kg
Tension 100-240 VAC, 50/60 Hz, 300 W

TECHNICAL CHARACTERISTICS
GENERAL
Alignment Automatic XYZ
Monitor 10.1" TFT display (1024 x 600)
Multi-point touch screen Observation area 14 mm
Medical Devices Directive EC MDD 93/42/EC amended
by directive 2007/47/EC
Output RS232/USB/VGA/LAN

MAPPING AND REFRACTION POWER
Spherical power range -20D a +200
Cylinder power range -20D a +20D
Axis 5a8
Measuring area min. 2 mm - max. 7 mm (3 zones)
Number of measuring points 1400 points
Acquisition time 0,2 s
Method Shack-Hartman

BACKLIGHTING
CORNEAL TOPOGRAPHY BY SPECULAR REFLECTION
Number of rings 24
Number of measuring points more than 100,000
Diameter of the covered corneal area From 0.33 mm to 10 mm
Measuring range From 37.5 D to 56 D
Repeatability 0,03 mm
Method Placido Discs

VISIONIX DETECTION RANGE
FO-based AR-K
AR-K
Ocular aberrometry
Retroillumination
Corneal topography
Non-contact tonometer
Scheimpflug camera
Pachymetry
Full eye tracking
Remote access
Service with/without internet connection
Color camera
Dry eye
NBUT
Efron classification
Tear meniscus value
