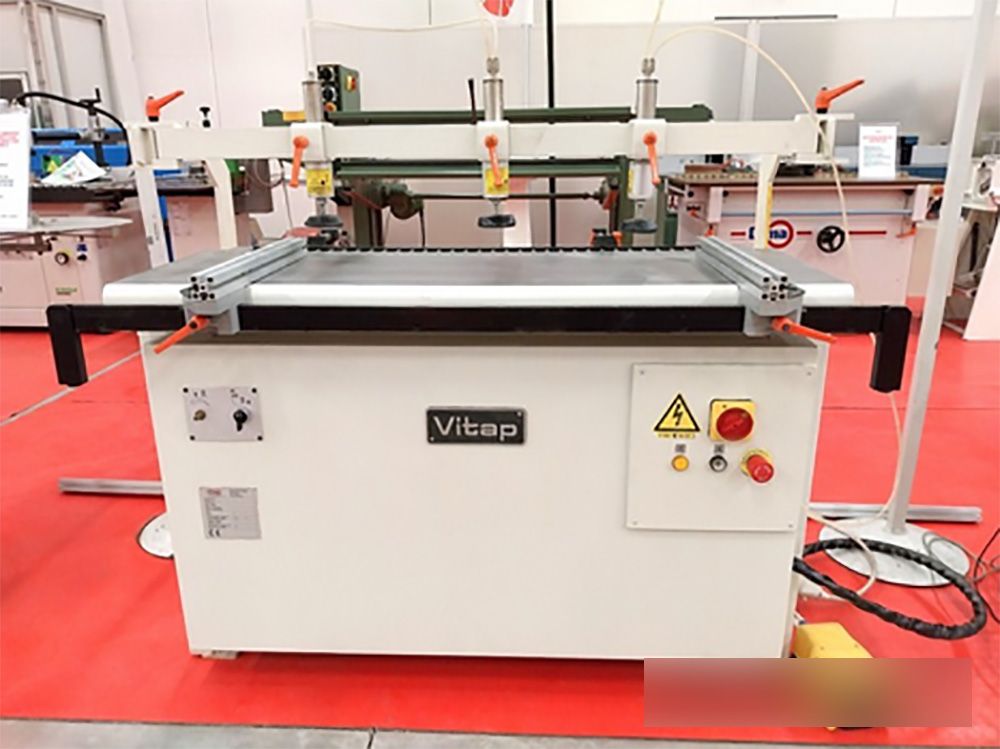

Vitap ALFA 35

Semi-automatic multiple boring machine with 35 spindles for furniture,
kitchens, bathroom furniture, custom-made furniture, panels - CE Standard

Technical data :
N° 35 spindles with quick coupling
Centre distance between each spindle mm 32
Centre distance between first and last spindle mm 1088
Max depth of hole mm 70
Board dimensions mm 1330 x 500
Spindle rotations per minute 2800
Motor power Hp 3
Turret with 6 different depth positions
Side fence
Horizontal/vertical 45 degree pneumatic tilting head
Metric bar 3000 mm with stops
Operating pressure 6- 8 atm
Overall dimensions mm 1590 x 860 x 1250 h
Weight kg 454
