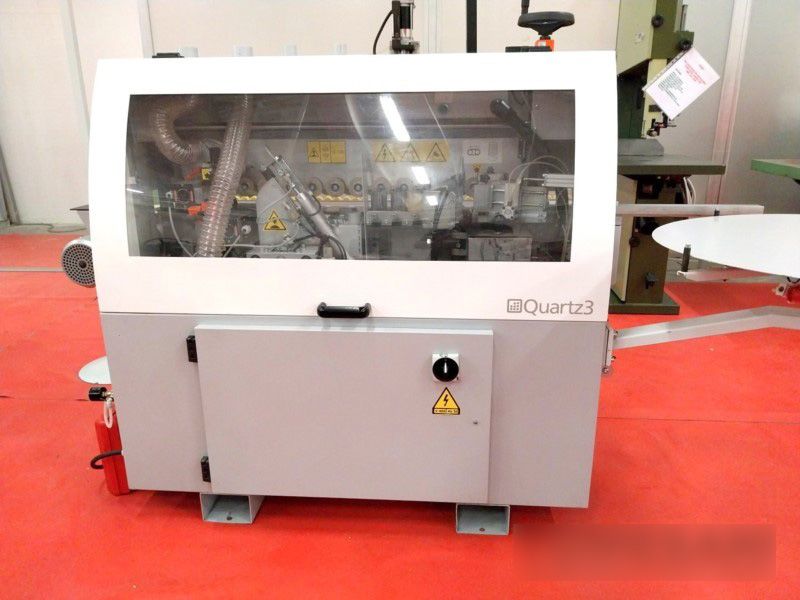

Vitap QUARTZ 3
Ref :
2735506-15-MT
Condition :
Used
Manufacturer :
Vitap
Model :
QUARTZ 3
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Automatic edge bander for wood, Pvc, Abs and melamine edges for carpentry, furniture,
kitchens, custom-made furnishings, panels and various - CE Standard
Technical data:
Panel height mm 10-50
Edge thickness mm 3
Minimum panel length mm 140
Track feed speed mt/min 7
Composition:
Gluing unit: Glue tank capacity kg 1 - Power consumption Kw 3,5
End cutting unit: Blade rotation speed rpm 12000 - Power consumption Kw 0,7 - Tools mm 80x2 F32
Trimming unit: Blade rotation speed 12000 rpm - Cutter diameter 68 mm Z6 R=2 -
SIKO display adjustment
Protective cabin
Panel support
Suction ports n° 2 diameter 60 mm - n° 2 diameter 40 mm
Max installed power 5 Kw
Compressed air 6 bar
Overall dimensions mm 2100 x 800 x 1500
Weight kg 400
