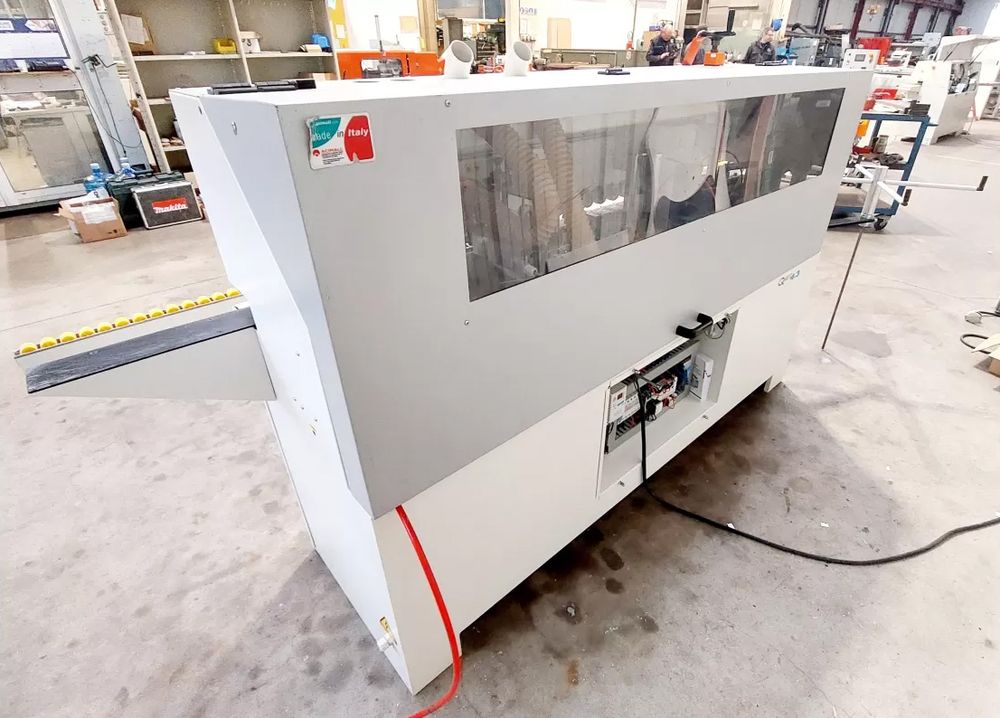

Vitap QUARTZ 4.3

Edgebander/Gluer with Rapid Melting Tank
MACHINING CAPABILITIES:
- Height (thickness) of the panel to be machined: 10 to 60 mm
- Minimum panel length to be machined: 140 mm
- Minimum width of the panel to be machined: 50 mm
- Maximum dimensions of the PVC rolled edge banding (thickness x width): 3 x 65 mm
(3 x 40 mm in ABS strips, 5 x 45 mm in solid wood)
(recommended overhang 2+2 mm)
- Panel overhang relative to the carpet (projection from the room) 25 mm
- Heating time for the bottom is approximately 15 minutes
- Training (forward speed) 10 m/min

MACHINE COMPONENTS:
- Reel tray Ø795 mm usable
- Work table with front extension (length x width): x mm
Worktop height from floor: 90 cm
- Chain drive treadmill
- Gluing unit; 1.5L rapid melting tank 190-210°C
Pneumatic pre-cut guillotine
3-roller rolling (pressing) machine, one of which is motorized
- End-cutting unit 12000 rpm
- Top/bottom flush trimming aggregate with skid copying
- Straight scrapers above/below
Digital counters for adjustments (Siko type)

OTHER FEATURES:
- General power supply: 400V. Three-phase + N + T 50Hz
- Maximum installed power IN 7.5A
- Drive motor: kW
- Glue pot power 3.5kW
- Saw motor: kW
- Flush trimming (milling) motors 2 x 0.55 kW
- Pneumatic supply, operating pressure 5 to 6 bar, dry air
- Suction mouth 2x Ø60 mm
- CE marking, Lockable disconnect switch, Emergency stop buttons
Transport dimensions (LxWxH): 3.10 x 0.90 x 1.60 m
Weight 600 kg
