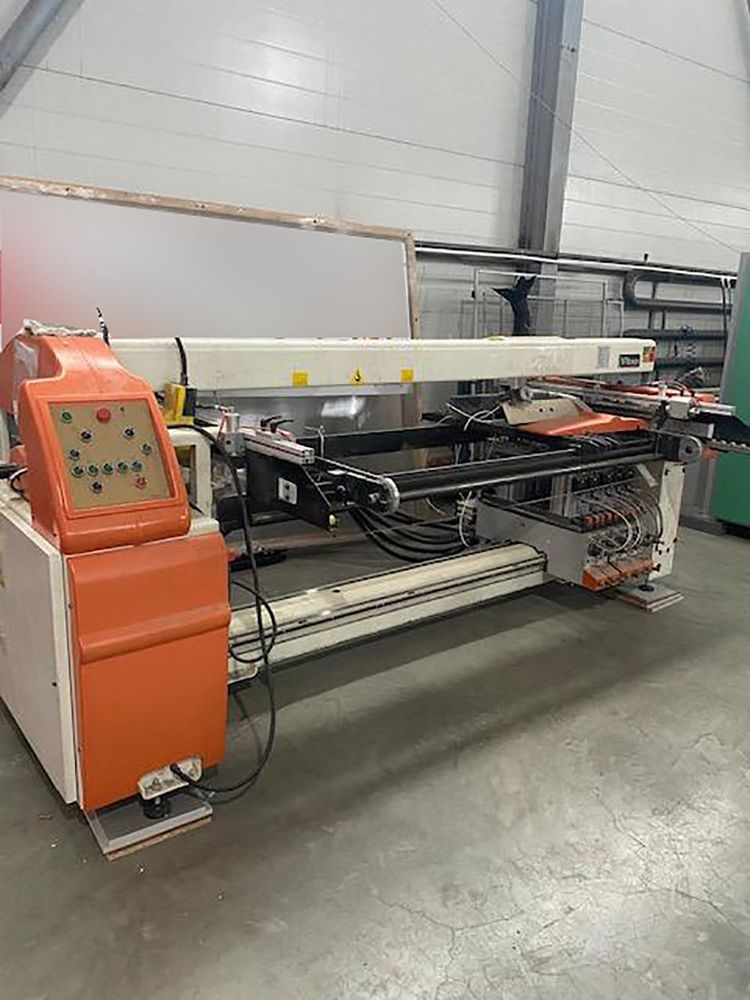

Vitap SIGMA 2T AS

Used drilling machine.
In working condition.

Specifications:
• Minimum panel length, mm 240
• Maximum panel length, mm 2000
• Minimum panel width, mm 70
• Maximum panel width, mm 700
• Maximum panel thickness, mm 80
• Distance between adjacent spindles, mm 32
• Distance between vertical drilling supports, mm smallest / largest 96 / 2000
• Adjustable drilling depth, mm 0-70
• Number of horizontal drilling supports, pcs. 2
• Number of spindles on horizontal support, pcs. 21
• Number of vertical drilling supports, pcs. 5
• Number of spindles on each vertical support, pcs. 9+9
• Drill spindle speed, rpm 2800
• Feed speed, m/min 57
• Required air pressure, bar 6-8
• Air consumption per head per cycle, l 7
• Air consumption per cycle, max, l 50
• Productivity, cycles/min 27
• Motor power, kW horizontal / vertical 1.8 / 2x1
• Overall dimensions, mm 3300x1400x1600
• Machine weight, kg 1700
