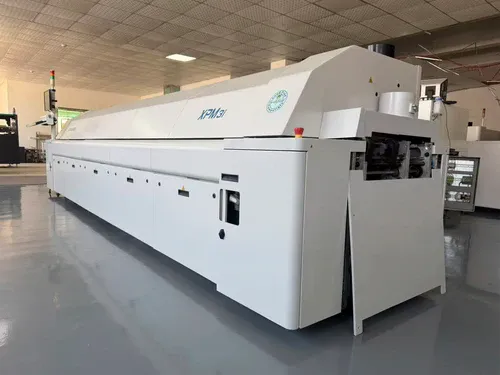

Vitronics Soltec 10-Zone XPM3i Reflow Oven

High-Performance 10-Zone Convection Reflow Oven for SMT Production

Key Features
• 10 Heating Zones + 3 Cooling Zones
• Forced Convection Air Heating
• Lead-Free Compatible
• Single-Lane Inline Configuration
• Supports Both Edge Rail and Mesh Belt Conveyors
• Precise Multi-Zone Temperature Profiling
• Designed for Medium to High-Volume SMT Manufacturing
• Stable and Repeatable Soldering Performance
• Industrial 480V, 3-Phase Power

Machine Specifications
• Manufacturer: Vitronics Soltec
• Model: XPM3i
• Year: 2016
• Machine Type: Convection Reflow Oven (Air)
• Application: SMT PCB Reflow Soldering

Thermal System
• Heating Zones: 10
• Cooling Zones: 3
• Heating Method: Forced Convection Air
• Profile Capability: Ramp, Soak, Reflow, and Cooling
• Uniform heat distribution for consistent solder joint quality
• Suitable for lead-free production environments

Conveyor System
• Single-Lane Inline Transport
• Edge Rail Conveyor
• Mesh Belt Conveyor to Be Installed.
• Flexible PCB handling for a wide range of board sizes

Electrical Requirements
• 480V, 3-Phase Power
• Built for continuous industrial production environments

Ideal For
• Contract Manufacturers (EMS)
• High-Mix / Medium-Volume Production
• Lead-Free SMT Assembly
• PCB Manufacturers Seeking Reliable Thermal Process Control
