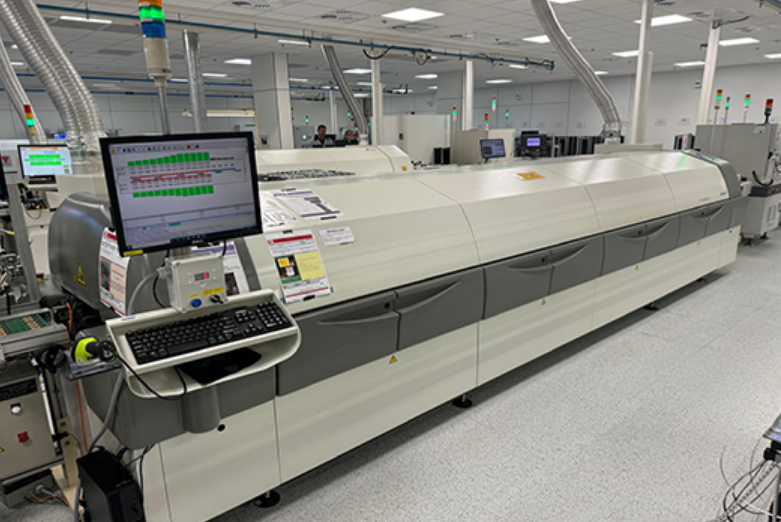

Vitronics Soltec 7038MR1243 N2 Oven Reflow

Vintage : 2011
Dimensions (L x l x H) : 5933 x 1600 x 1420 mm
Weight : 2500 KG
Full nitrogen inertion
Pin chain conveyor + central support
Maximum board width. : 500 mm
Conveyor direction: left to right
Process heating length : 3660 mm
12 top/bottom zones
Maximum process temperature : 350°C
Cooling length : 1222 mm
4 top/bottom zones
Flux trap system
External water close loop system is required for cooling and flux trap
Board counter
Hight & low tremerature controlled by soft with alarm
Limited heating power at start up
Motorized opening of the vault
Operating software: Windows XP
Interface screen for operator
3 colors light columns with alrm buzzer
Power inlet : 400 Volts (3P+N+T) / Puissance : 40 KVA
Communication SMEMA 2
Nitrogen : 6 bars
Fume exhaust : 1 outlet Ø 165 mm - 250 m3 / heure
Color : RAL 9002 et 7036
CE stamp
