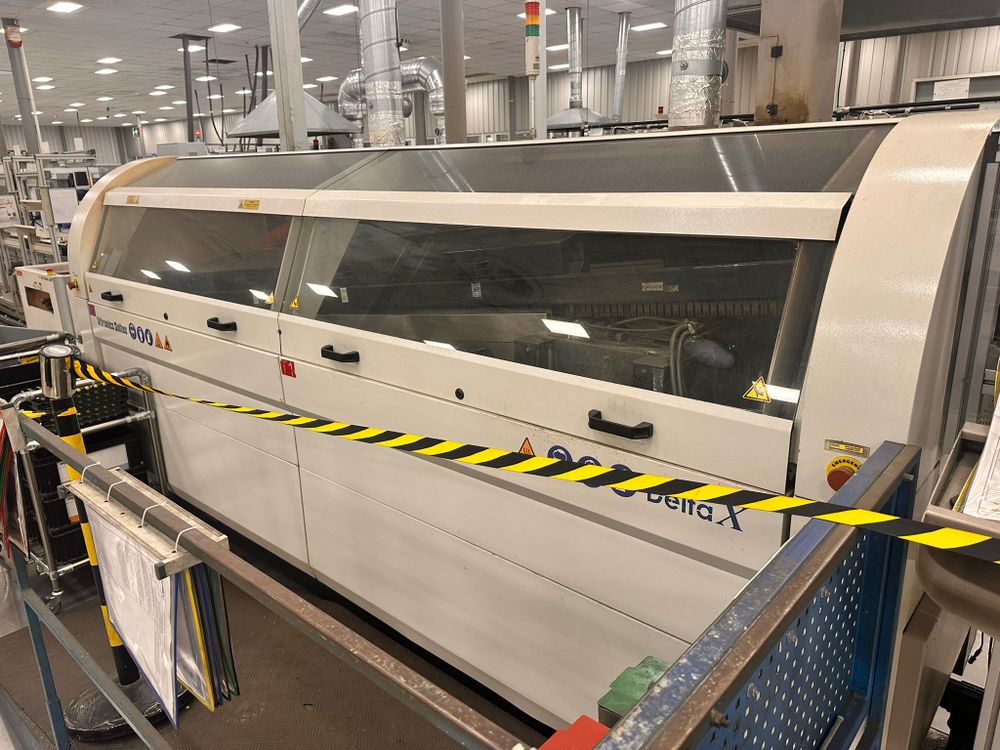

Vitronics Soltec Delta X

Final Specifications – Your Configuration
Dimensions & Weight
Machine size (L × W × H): 3,540 × 1,455 × 1,665 mm
Weight: ~2,300 kg (with nitrogen and convection options)

Conveyor & PCB Handling
Parallel conveyor alignment: ±1.0 mm (lead-screw driven)
Max throughput: 3 PCBs in parallel
Conveyor angle: 5°–7° (manual adjustment)
Titanium finger chain system
Finger cleaning & wetting system included

Preheating System
3 PID-controlled zones

Equipped with:
IR Calrod heating
Forced convection preheat modules
Total preheat length: ~1.8 m

Fluxing System
Pressure-controlled spray fluxer
Stepper-driven
Single or dual nozzle, recipe-selectable
Quick-change fluxer design
Flux tank control via software

Solder Pot & Wave System
Titanium pot components
Integrated dross management system
SmartWave soldering module
NitroWave nitrogen hood for inert environment
Main wave + SmartWave combo for improved wetting

Crash Detection & Software
Mechanical crash detection with adjustable sensitivity
Windows-based operator software with:
Recipe control
Board tracking
Alarm diagnostics
SPC logging and reporting

Summary Table
Feature Specification
Dimensions (L×W×H) 3,540 × 1,455 × 1,665 mm
Weight ~2,300 kg

Conveyor Parallelism ±1.0 mm
Conveyor Angle 5°–7° adjustable
Preheat Zones 3 zones with PID
Preheat Type IR Calrod + Forced convection
Fluxing System Stepper-driven, pressure-controlled, 1 or 2 nozzles
Solder Pot Titanium with dross management
Wave Type Main + SmartWave
Nitrogen Option NitroWave (enclosed hood)
Fingers Titanium with cleaner/wetter system
Crash Protection Mechanical + software integrated
Software UI Windows-based w/ SPC, recipes, alarms
