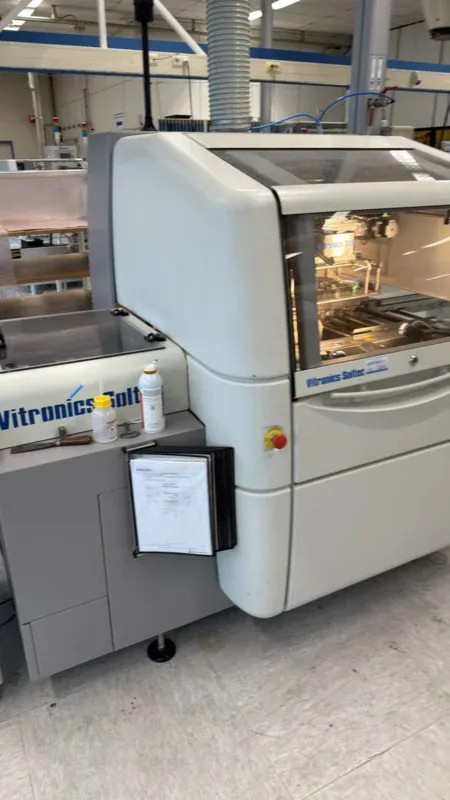

Vitronics Soltec Selective Solder

Specification
Machine Type Selective Soldering System
Model 6746
PCB Size Capacity Max. 410 × 410 mm
Process Type Flux, Preheat & Selective Wave Solder
Configuration In-line selective solder system
Flux System MultiFlux
Preheater Type Inline Quartz Preheater
Preheater Power 8.80 kW
Preheater Area 375 × 375 mm
Solder Pot Volume 6 Liters
Solder Pot Capacity Approx. 40–45 kg solder
Max Solder Temperature 350 °C
Solder Temperature Accuracy ±5 °C
Available Nozzle Sizes 4, 6, 8, 10, 12, 14 mm
Nitrogen Consumption Approx. 3 m³/h
Air Pressure Required 6 bar
Power Requirement 3×400V, 50/60Hz
Maximum Power Consumption 10 kVA
Exhaust Connection Ø160 mm
Machine Length 1813 mm
Machine Width 1446 mm
Machine Height 1611 mm
Machine Weight Approx. 1052 kg
