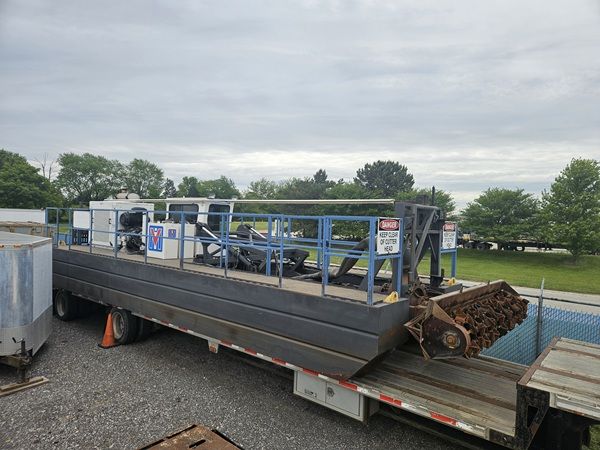

VMI VMI MD-815 8" Horizontal Auger Dredge

VMI MD-815 8" Horizontal Auger Dredge
2016

Length Over All: 38' 6"
Beam: 9' 11"
Height (without A/C): 8' 10"
Draft: 25"
Weight: 26,500 lbs
Fuel Capacity: 325 U.S. Gallons
Main Engine: Cummins QSL 9
Power @ 2,100 RPM: 325 hp
Meter Hours: 3,914 hours
Hydraulic Pumps: 3 variable displacement, axial piston / 1 fixed displacement
Hydraulic Motors: Fixed displacement
Hydraulic Capacity: 170 GPM @ 2200 RPM
Hydraulic Reservoirs: 100 U.S. Gallons
Hydraulic Drive: Hydraulic pump drive, direct from engine
Hydraulic Filters: Protected hydrostatic loop, high pressure suction & return
Cutter Type: Horizontal with full-width flow-through suction
Cutter Size: 9' 11" wide x 21" diameter
Cutter Speed: Variable 0-80 RPM (forward & reverse)
Cutter Torque: 30,348 in-lbs (3,429 N-m)
Operating Depth: Variable to 15'
Dredge Pump Type: Hi-chrome cast iron, centrifugal, recessed impeller
Dredge Pump Impeller: 25"
Dredge Pump Suction: 8"
Dredge Pump Discharge: 8"
Dredge Pump Sphere Passage: 7.75"
Dredge Pump Performance: 3,000 gpm @ 140 feet (21.3 m) TDH (water) @1030 RPM
Pontoon Dimensions: Two – 34" x 40" x 34' 6"
Pontoon Description: 10-gauge steel, integral bulkheads & stiffeners, cora-foam filled
Propulsion Type: Treble sheave hydraulic winch
Traverse Speed: Variable 0-50 ft/min
Cutting Speed: 0-15 ft/min
Electrical Voltage: Heavy Duty, 12 volt
Alternator Output: 100 amp

Electronic positioning system with Trimble GPS
Jewell Instruments Inclinometer
Getec military grade laptop
Paddle & cutting teeth available
Optional IMS 8" x 10" booster pump (250604)
Optional 2,800 ft. of pipe (1,200' floating + 1,600' shore pipe)
