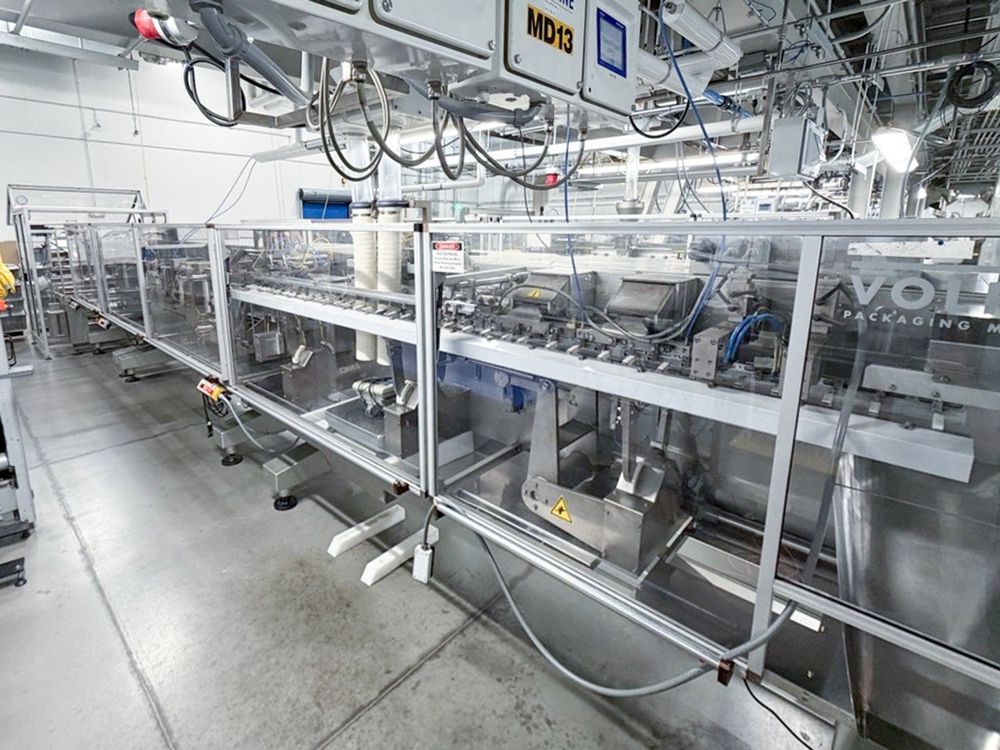

Volpak SI-360F2

Horizontal Form-Fill-Seal Pouch Machine (Duplex)
VOLPAK SI-360F2 –

The Volpak SI-360F2 is a duplex horizontal form-fill-seal (HFFS)
pouch machine designed for high-speed,
two-up production of flexible stand-up pouches.
Engineered for liquids, semi-liquids, powders,
and granular products, this model combines versatility
with reliable performance. Its duplex configuration
simultaneously forms, fills, and seals two pouches per cycle,
maximizing output while maintaining consistent pouch quality.
Servo-driven motion control and a PLC-based automation
platform ensure smooth operation,
precise seal management, and quick format changeovers.
The SI-360F2 accommodates a wide range of pouch sizes,
reclosable features, and film structures
while delivering the durability and efficiency expected
from Volpak/Coesia equipment.

Technical Highlights
– Duplex Format • Minimum pouch size (W × H × G): 120 × 110 × 30 mm
• Maximum pouch size (W × H × G): 180 × 310 × 90 mm
• Maximum pouch volume: 1500 cc
• Maximum output: 120 ppm
• Type of material: Heat-sealable films
• Max reel width: 745 mm • Max reel diameter: 600 mm
• Reel core diameter: 70–72 mm / 150–152 mm
• Electrical requirements: 200–480 V | 50/60 Hz | 3Ph + G
• Machine dimensions (L × W × H): 10,000 × 2,075 × 2,420 mm
• Net weight: 8,600 kg
