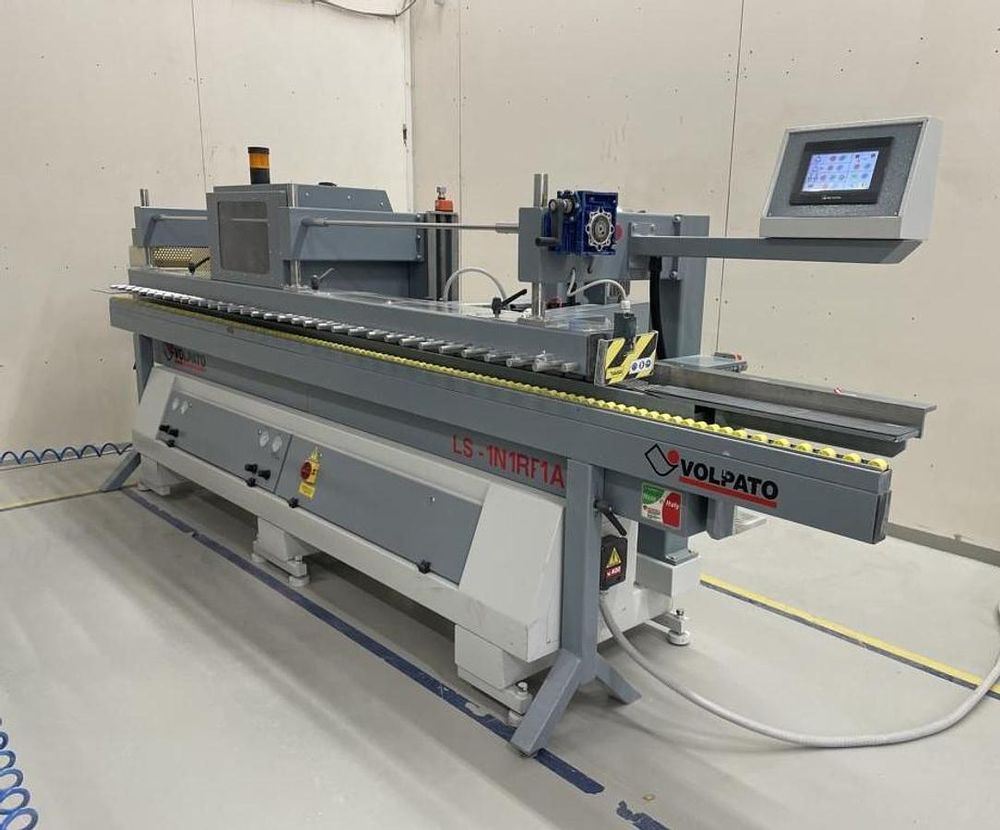

Volpato LS 1N1RF1A

- Variable feed speed from 0 to 25 m/min
- Dimensions: 4400x1400x1900 mm
- Net weight: 1100 kg

1st unit:
Belt sanding unit
- Motor with two speeds
- Belt speed: 7-14 m/s
- Pneumatic tensioning of the sanding belt.
- Time-controlled lowering and raising of the sanding sanding pad.
- Air blower system for cleaning and cooling the sanding belt of the sanding belt, connected to that of the sanding pad
- Rotation of the sanding belt : 135°
- Diameter of the suction nozzle: 100 mm
- Sanding belt dimensions: 80 x 2450 mm.
- Compressed air consumption (for each sanding belt unit):
- Operating consumption: 2.5 m³/hour at 5 atm
- Blower consumption: 28 m³/hour at 5 atm
- Exhaust air volume: 900 m³/hour
- Exhaust air velocity 30m/s

2nd unit:
Double milling unit
- The unit consists of two motors with 1.1 kW each, the first is converted from 0° to -45
the second from 0° to +45°, each with copying rollers in the X and Y axes, the second is connected to the of the machine.
- Diameter of the motor shaft = 20 mm.
- Outer diameter of the tool = 70 mm.
- Number of teeth of the tool = 4 pieces
- Tool speed = 12,000 rpm
- 2 suction nozzles each 80 mm.
- With pneumatic tool removal.

3rd unit:
Grinding wheel unit
- Single-stage motor 1.5 kW
- Rotation of the unit: 180°
- Max. Wheel diameter: Ø220mm.
- Maximum wheel width: 90 mm.
- Diameter of the disk shaft: Ø 30 mm.
- Diameter of the extraction nozzle: 100 mm.
- Exhaust air volume: 900m³/h
- Exhaust air speed: 30m/s
- Compressed air consumption (for each grinding wheel unit):
- Operating consumption: 2.3 m³/h
- Blower consumption: 20 m³/h
