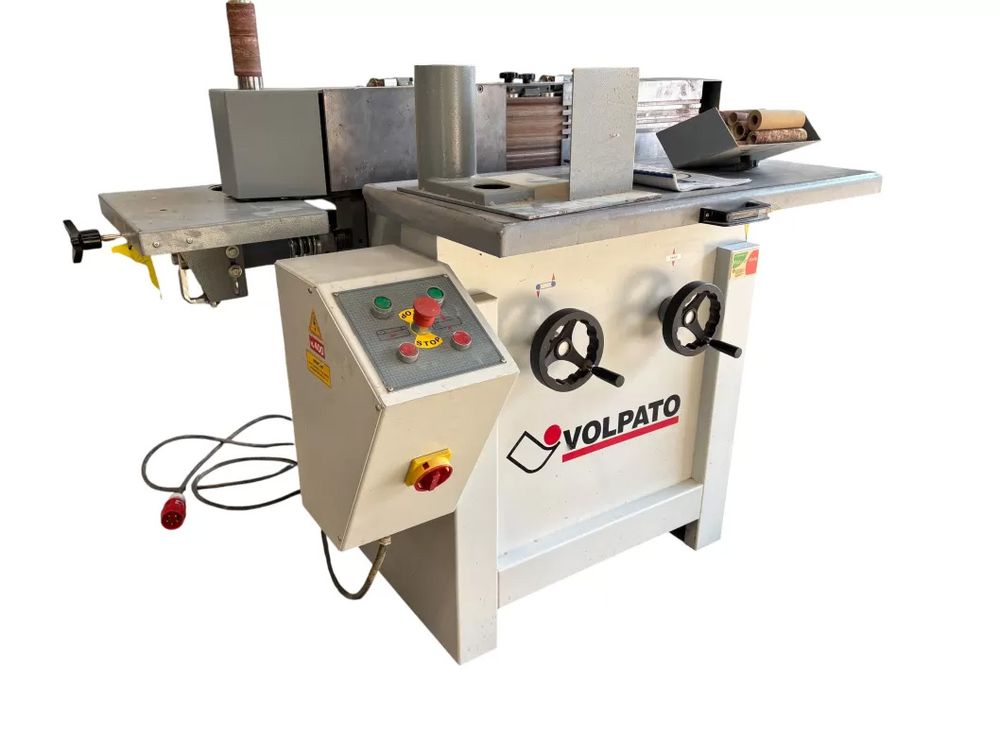

Volpato LVO 150 T

MULTIFUNCTIONAL OSCILLATING EDGE SANDER
MACHINING CAPABILITIES:
- Tilt: 0-45°
- Vertical displacement of the group: 150 mm
- 2 Tape speeds: 8 and 11.5 m/sec
- Oscillation stroke: 15 mm.
- Skate support dimension:
800 x 150 mm (right side), 860 x 150 mm (rounded side)

MACHINE SPECIFICATIONS :
- General power supply: 400V, three-phase, 50Hz
- Total installed power: 2.65 kW IN max 8 A
- Belt motor: 2.30 kW (3 hp) 1420 RPM
- Oscillation motor: 0.15 kW (0.2 hp)
- Oscillation stroke: 15 mm.
- Belt speed: 15 m/s
- Control panel inclined towards the operator.
- Strip size (length x width): 2640 x 150 mm
- Height of the main worktop: ?? cm
- Main support plane dimensions: 940 x 460 mm.
- Tilt with graduations and adjustable stop: 90 to 45°.
- Dimensions of the upper support surface: 330 x 30 mm.
- Graphite-banded skate.
- Drive roller Ø 160 mm and driven roller Ø 80 mm.
- Pneumatic supply: 6 bar max
- Suction: Mouth Ø100 mm
- CE marking
- Lockable switch, Emergency stop buttons
- Overall dimensions: 1700 x 1000 x H.1300 mm.
- Weight: 260 kg
