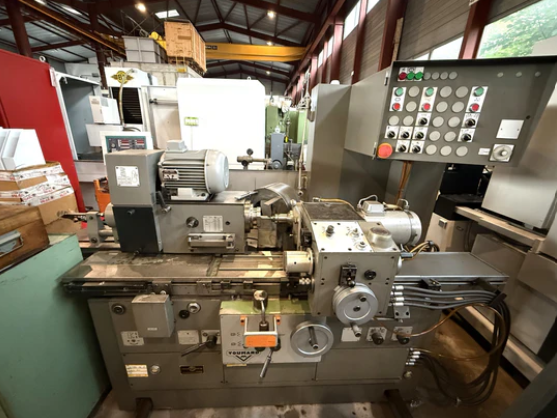

Voumard 5 A

Ref : 2809712-3-CP

Condition : Used

Manufacturer : Voumard

Model : 5 A

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Minimum internal grinding diameter: 5 mm
Maximum internal grinding diameter: 200 mm
Grinding depth: 250 mm
Centre height: 180 mm
Distance between centres: 1000 mm
Spindle hole: 50 mm
Workpiece spindle speed: 125–1000 rpm
Workpiece spindle speed steps: 6
Grinding spindle speed: 3600–40000 rpm
Grinding table travel: 3–600 mm
Table speed: Up to 10 m/min
Workpiece spindle motor: 1.0 kW
Grinding spindle motor: 4 kW
Total power: 8.7 kW
Electrical supply: 380 V / 3 Ph / 50 Hz
Machine dimensions: 1800 × 900 × 1500 mm
Machine weight: Approx. 2700 kg
Coolant system
Set of flanges
3 internal grinding spindles
Maximum spindle speed: 18000 rpm
Maximum spindle speed: 28000 rpm
Steady
Tool cabinet
