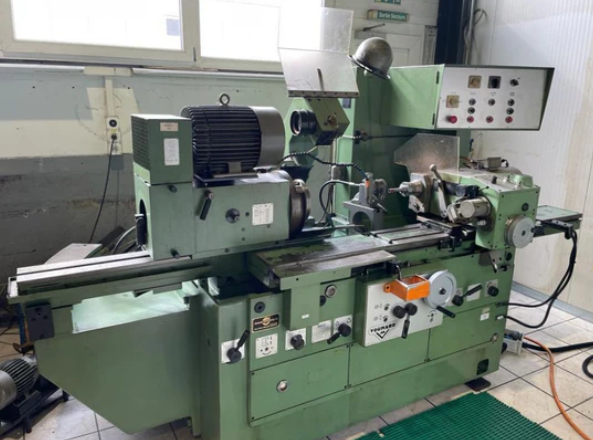

Voumard 5 SLP 1000sp

Min. internal grinding diameter: 5 mm
Max. internal grinding diameter: 200 mm
Grinding depth: 250 mm
Centre height: 180 mm
Max. workpiece diameter: 340 mm
Max. workpiece length with steady: 1000 mm
Spindle hole: 50 mm
Max. angle: 30°
Grinding table travel min.: 3 mm
Grinding table travel max.: 600 mm
Table speed: up to 10 m/min
Workpiece spindle speeds: 140 – 1120 rpm
Workpiece spindle speed steps: 6
Voltage: 3x380V / 50Hz
Total power: 15 kW
Machine weight: 3000 kg
Machine dimensions: 2400 x 1200 x 1400 mm
Redressing device
Frontal grinding device
2 internal grinding spindles
Internal grinding spindle max. speed: 22000 rpm
Internal grinding spindle max. speed: 28000 rpm
Steady
Lamp
Protective cover
