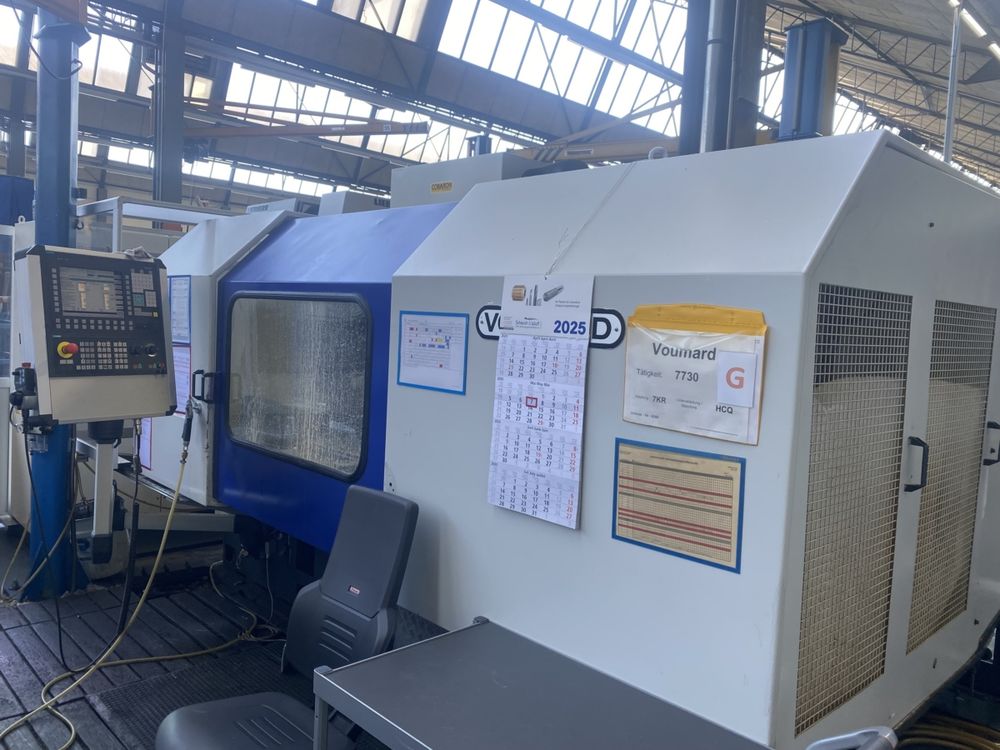

Voumard Siemens Sinumerik 840D Solutionline Variable Speed 400 CNC U2 L10 T2 4 Axis
EUROPE (Western and Northern)
Z-axis travel: 650 (950) mm
Z-axis resolution: 0.001 mm
Z-axis rapid traverse: 12 m/min
Z-axis grinding stroke speed: 0 - 9.99 m/min
Z-axis feed rate: 0 - 99.99 m/min
Z-axis step feed during reversal: 0 - 0.999 mm
X-axis travel: 150 mm
X-axis resolution: 0.001 mm / Ø
X-axis rapid traverse: 5 m/min / R
X-axis grinding stroke speed: 0 - 5 m/min / R
X-axis feed rate: 0 - 99.99 m/min / R
X-axis step feed during reversal: 0 - 0.999 mm / Ø
B-axis swivel: -32° (-23°) / +2°
B-axis resolution: 0.0001° (0.36")
U-axis travel: 300 mm
U-axis resolution: 0.001 mm / Ø
U-axis travel speed: 5 m/min
Control: Siemens Sinumerik 840D Solutionline
Grinding diameter: 20 - 300 mm
Oscillation diameter: 350 (500) mm
Workpiece length: 300 (1300) mm
Recommended grinding depth: up to 300 mm
Centre height above workpiece table: 200 (300) mm
Centre height above grinding table: 330 (430) mm
Workpiece spindle bore: 50 (70) mm
