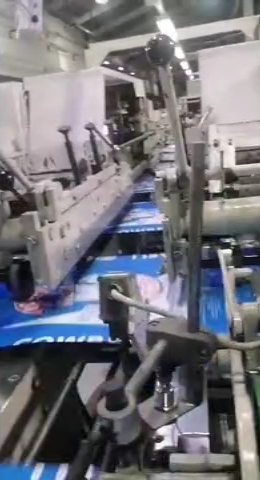

W & H 2360-22

Condition Used
Tube length (with min bottom width) 560-1500mm
Tube length (with max bottom width) 870-1640mm
Centre to centre distance of bottoms 360-1300mm
Bottom flush cut width 75-220mm
Bottom stepped end width 75-210mm
Dimensions of opened bottom 200-480mm
Sack length (flush) 435-1370mm
Sack length (stepped end) 435-1370mm
Tube width 350-700mm
Valve length without fold 90-240mm
Valve length with fold 130-280mm
Length of valve fold 10-60mm
Roll width 110-460mm
Prefabricated tubular width 90-180mm
Cut off length selectable in steps of... 33mm
Max roll diameter 1300mm
