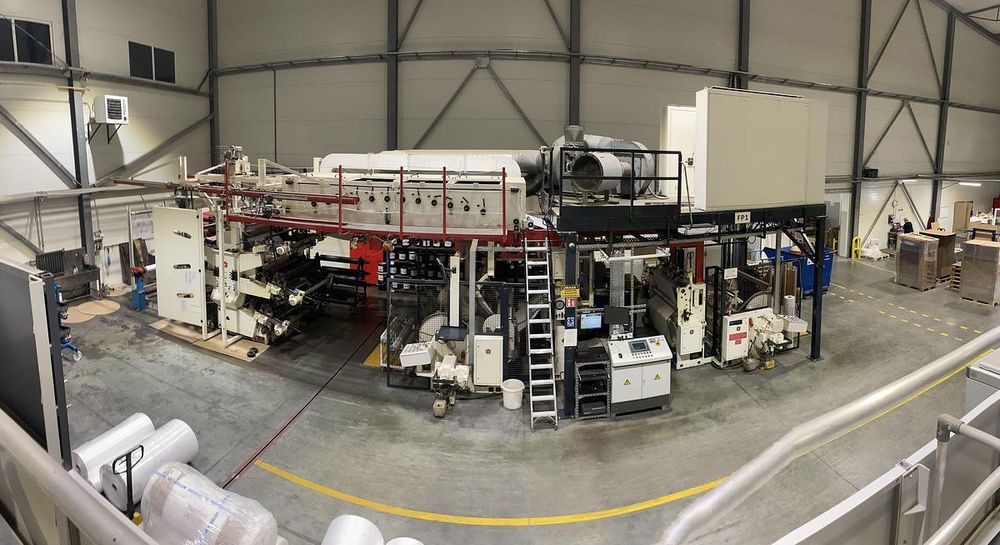

W & H Olympia 736 ST 6 1270 mm

Condition Used
Type Flexo C.I. | with gears
Number of printing decks 6 colours
Maximum web width 1320 mm
Maximum printing width 1270 mm
Print repeat range 300 - 910 mm
Gear pitch 10 mm
Mechanical maximum speed 250 m/min
Maximum unwind roll diameter 1000 mm
Maximum rewind roll diameter 1000 mm
Inner core diameter unwinder and rewinder 76 mm
Unwinding tension range 25 – 270 N
Rewinding tension range 35 – 360 N
Materials PAPER - HDPE - Polyethylene/LDPE - Laminated foils - PP - Cellophane and similar materials
Drying system Hot air drying system : Available also a Gas burner drying system (actuallt dismantled because not necessary, the machine is now used for paper)
Electrical panel control SIEMENS (upgraded)
Web guiding system BST (from year 2018)
Machine dimensions (approx.) Overall length: 17.0 m | Overall width: 8.30 m | Overall height: 5.20 m

Additional information:
Siemens electronic control system
Automatic web guiding system
Pneumatic and hydraulic web tension control | Inspection camera
Drying and cooling systems
Unwinding and rewinding stations
Automatic lubrication systems
Cooling rollers
Air shaft systems
Edge guiding system

Printing cylinders (16 pcs in total) 5 pcs x 310 | 6 pcs x 520 | 5 pcs x 580
Anilox (7 pcs in total) 3 pcs x 80 | 1 pcs x 120 | 1 pcs x 160 | 2 pcs x 200
Gears (157 pcs in total) 7 pcs x 31 | 8 pcs x 32 | 6 pcs x 33 | 6 pcs x 34 | 6 pcs x 35 | 6 pcs x 36 | 6 pcs x 37 |
6 pcs x 38 | 6 pcs x 39 | 4 pcs x 40 | 5 pcs x 42 | 6 pcs x 44 | 6 pcs x 46 | 6 pcs x 49 | 5 pcs x 50 | 6 pcs x 52 |
5 pcs x 54 | 5 pcs x 57 | 6 pcs x 58 | 5 pcs x 59 | 6 pcs x 60 | 6 pcs x 61 | 8 pcs x 62 | 5 pcs x 64 | 6 pcs x 66 |
1 pcs x 70 | 3 pcs x 71 | 3 pcs x 75 | 3 pcs x 76

Sleeves included / inside/outside diameter : (78 pcs in total) 9 pcs x 310/320 | 1 pcs x 310/330 | 5 pcs x 310/340 | 3 pcs x 310/350 | 4 pcs x 310/360 | 3 pcs x 310/390 | 5 pcs x 310/380 | 5 pcs x 310/400 | 2 pcs x 310/420 | 2 pcs x 310/440 | 1 pcs x 310/450 | 2 pcs x 310/460 | 1 pcs x 310/490 | 4 pcs x 310/500 | 4 pcs x 520/520 | 1 pcs x 520/560 | 5 pcs x 520/570 | 4 pcs x 580/590 | 2 pcs x 580/600 | 3 pcs x 580/610 | 2 pcs x 580/620 | 1 pcs x 580/640 | 4 pcs x 580/660 | 2 pcs x 580/750 | 3 pcs x 580/760
Visible in operation Yes
