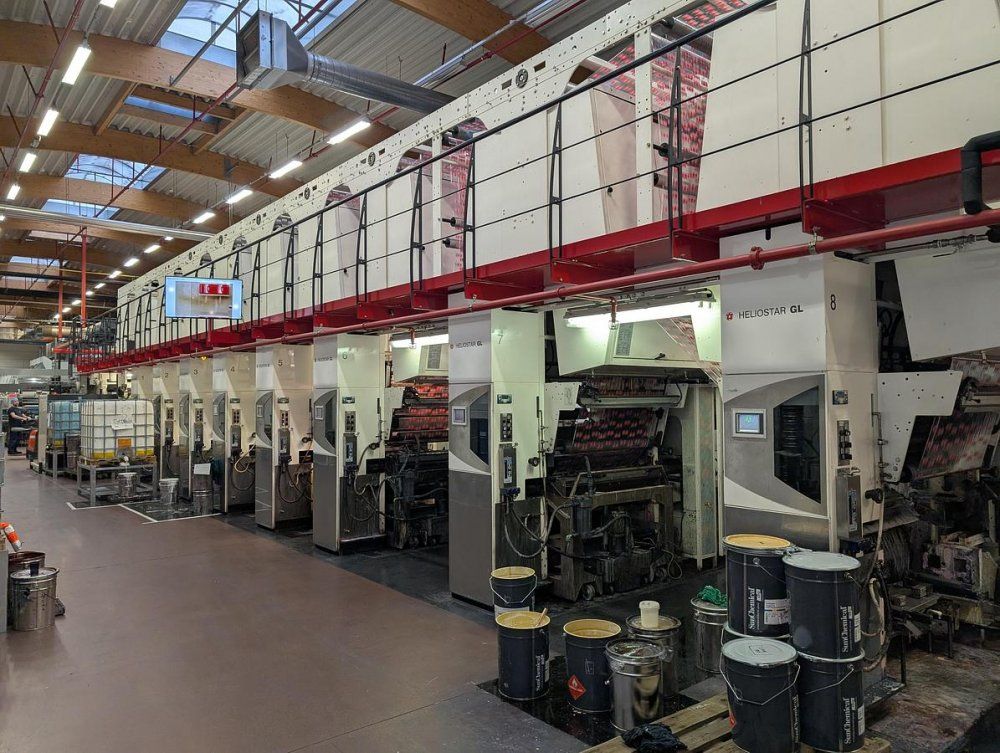

W&H ( Windmöller & Hölscher ) Heliostar S 100 mm

Gravure printing machine
Number of colors 8
Print possibilities 8+0
Overhaul/renovation 2016
Drive Electronic shaft
Trolley system Yes
Web width (mm) 1020
Print width (mm) 100
Print repeat range (mm) 450-1050
Drying heat surce GAS
Unwinder type Turret flying splice with reel lift
Max reel diameter unwinder (mm) 1000
Rewinder type Turret flying splice with reel lift
Max reel diameter rewinder (mm) 1000
Videocamera BST
Register controll Yes
Vyscosity control YES
Corona treatment YES
Print cylinders 1 set

Updates in 2016 includes : Regi_star 20 update IPQ Check pro 100% inspection
Retrofit to upgrade the existing couplings and motors for gravure cylinder drive to the latest version of Heliostar S
Cnsisting of: parts for replacing the drives for inking rollers chucks with adapter drives support
to the chucks chuck sensors gravure cylinder bearings replacing parts for the sidelay register sidelay
register drives -sidelay register guards motor for gravure cylinder drive mechanical mounting parts
electrical accessories documentation
