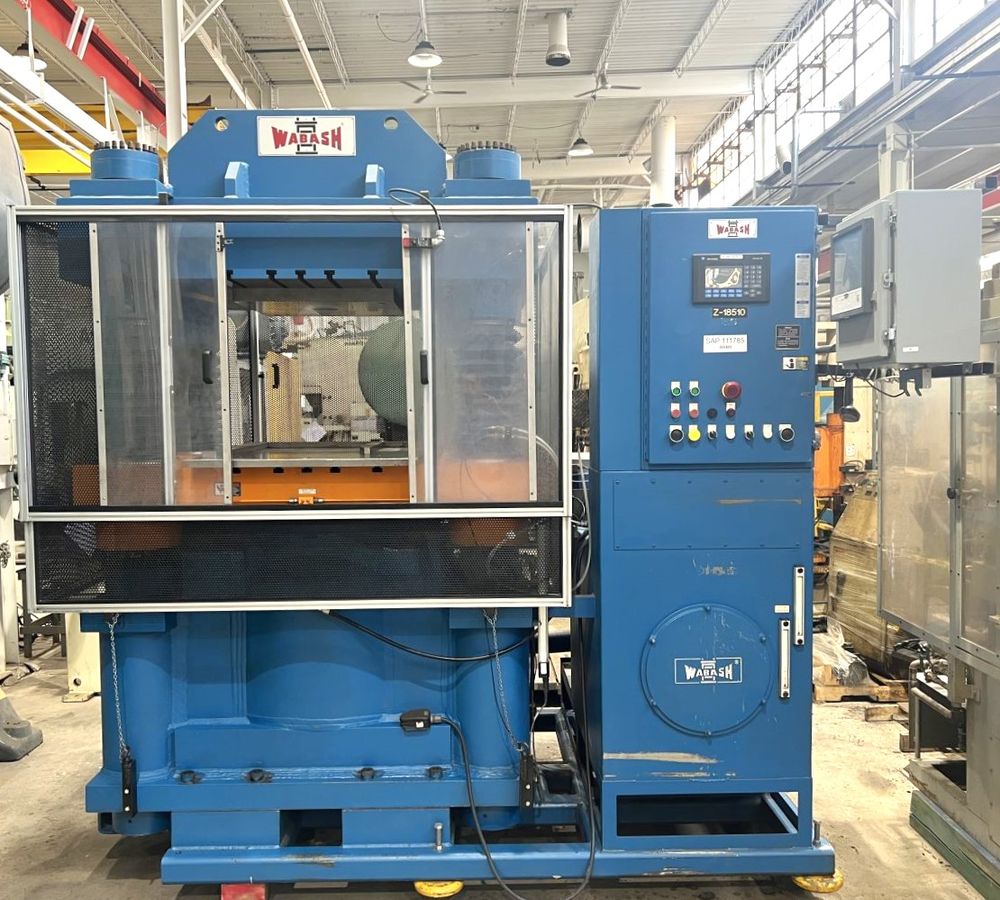

Wabash 1000-1524-X Press 1000 ton

Stroke 18 in
Maximum stroke approx. 18 in (transducer approx. 16 in)
Maximum daylight approx. 26 in (approx. 24 in with transducer)
Overall bed & ram area 66 in x 42 in
Distance between posts 42 in x 22 in
Usable bed area 36 in x 42 in
Bolster plate 32 in x 36 in x 1 in thick
Ram rod diameter approx. 28 in
Cylinder bore 30 in diameter
Four column/post diameter 7 in
Floor to bed height approx. 62 in with pads (61 in without)
Control system Allen Bradley SLC 5/03 with PanelView 550 touchscreen
Motor power 30 HP
Motor voltage 230/460 V
Full load current 102/51 A
Approx. dimensions 111 in x 82 in x 116 in high
Approx. weight 65,000 lbs
T-slot configuration approx. 6 in, 4 in, 4 in, 6 in on centers
Picking holes 4 with 2 in diameter holes 0.75 in black pipe
