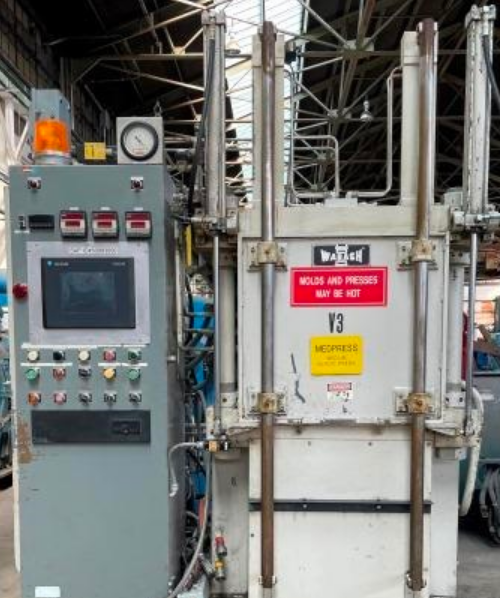

Wabash V100-1212-3CTMX Vacuum Press

(3) 12′′x12′′x3” platens (stainless steel, electrically heated).
100 Ton
Side plate design
Approx. 10′′ DL between platens
10′′ dia. main ram x 10.5′′ stroke
47” Working Height
28” l-r between sides
Self-contained hydraulic and vacuum units located behind
Unitized base
Front vacuum door is hydraulically powered for opening/closing/locking.
460V/3PH/60HZ
Manuals
Overall dimensions: 81′′ l-r x 70′′ f-b x 95-1/2′′ H
Press reported in excellent condition.
Used 4-Post Vacuum Rubber Compression Molding Presses
