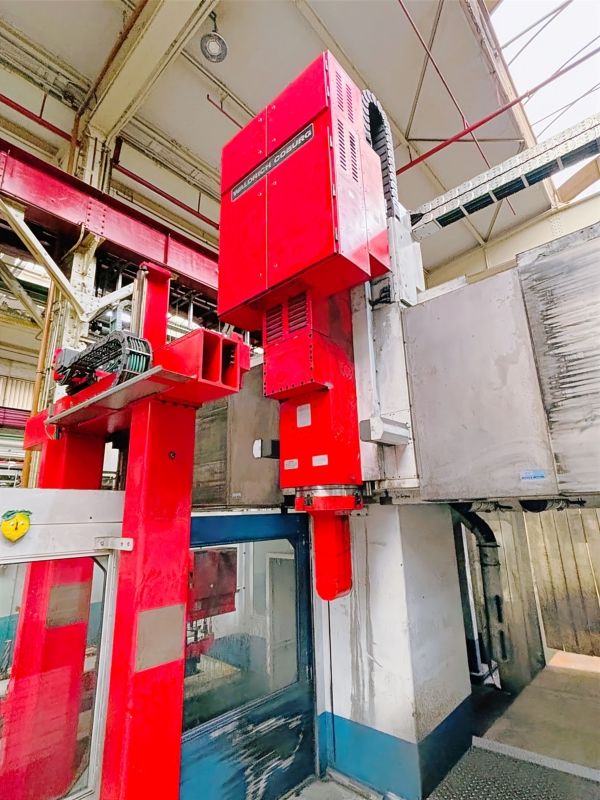

Waldrich Coburg MC 2500 5000 rpm

X-axis travel: 9000 mm
Y-axis travel: 4350 mm
Z-axis travel: 1250 mm

Control: Siemens 840D
Rapid traverse (X-axis): 30000 mm/min
Rapid traverse (Y-axis): 30000 mm/min
Rapid traverse (Z-axis): 20000 mm/min
Feed speed (X/Y/Z): 1–10000 mm/min

Table size: 3500 x 2000 mm
Workpiece weight (double table): 40 t
Workpiece weight (single table): 20 t
Column distance: 2500 mm

C-axis: 360°
Positioning accuracy C-axis: 0.001° (0–360°)

Milling spindle power: 63 kW
Milling spindle torque: 3300 Nm
Milling spindle speed: up to 5000 rpm

Tool taper: ISO 50
Tool magazine capacity: 60
Max tool weight: 50 kg
Max tool diameter: 360 mm
Max tool length: 600 mm
Tool changer included

Internal coolant system feed
Angular milling head: HSD 70 C 650 M3
Universal angular milling head: GSC 120 C 450 M3
Vertical spindle unit: VS 36 C 650 M3
Vertical spindle unit: VS 330 C

Machine weight: 140 t
Machine dimensions: 22 x 11 x 6 m
