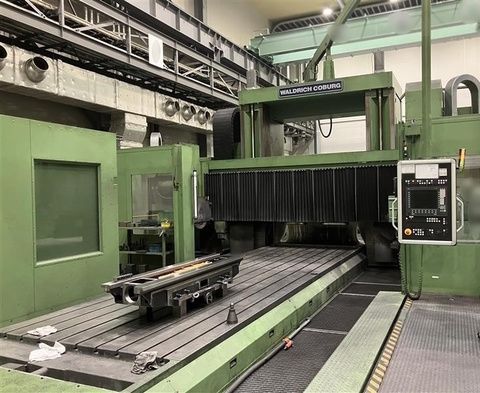

Waldrich Coburg WAY GRIND 2000AC

2000 mm table width
2200 mm grinding width
2200 mm distance between column covers
2000 mm grinding height
6000 mm grinding length
6825 mm longitudinal table travel
8000 kg/m table load
20000 kg max total table load
2000 mm universal grinding head max grinding height
1925 mm peripheral grinding head max grinding height
1.1–1.2 to max 10–14 m/min table speed
±1 mm positioning accuracy
50 kW max peripheral grinding head drive power
500–1100 rpm peripheral grinding head spindle speed
600 mm max peripheral grinding wheel diameter
150 mm peripheral grinding wheel width
150 mm peripheral grinding wheel internal diameter
22 kW max universal grinding head drive power
500–2500 rpm universal grinding head spindle speed
600 mm max universal grinding wheel diameter
100 mm universal grinding wheel width
250 mm universal grinding wheel internal diameter
±110° grinding head indexing
1° indexing steps by Hirth gear
8-station automatic grinding wheel changer
1 dressing device for universal grinding spindle
1 dressing device for peripheral grinding spindle
Wet grinding device
Coolant filter
