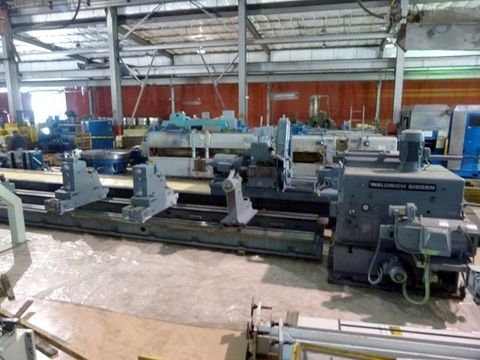

Waldrich Siegen WST IV H80 x 12000

control conventional
grinding diameter max. 1981 mm
grinding diameter (extendable) 2000–2200 mm
grinding length max. 12000 mm
work weight max. 80000 kg
grinding wheel diameter max. 813 mm
grinding wheel width max. 100 mm
grinding wheel bore 305 mm
grinding spindle drive motor power 44 kW
grinding spindle speeds 450–1800 rpm
workpiece headstock drive motor rating 44 kW
workpiece headstock spindle speeds 0.5–300 rpm
grinding support infeed travel max. 650 mm
grinding support longitudinal travel max. 12405 mm
machine length 18600 mm
machine width 5570 mm
machine height 2320 mm
machine weight 134000 kg
hydrostatic guideways
coolant unit with filtration system
grinding wheel dressing device
belt grinding unit 100 mm width
roll cambering / crowning
2 x 2-jaw steady rests, range 200–510 mm
cross adjustment of steady rests 600 mm
telescopic guideway covers
