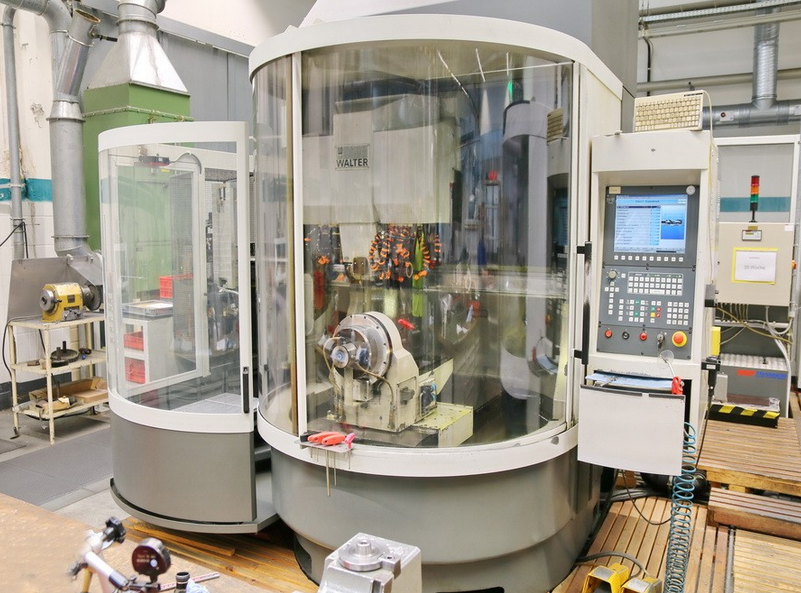

Walter HELITRONIC POWER PRODUCTION
Ref :
2735817-3-GO
Condition :
Used
Manufacturer :
Walter
Model :
HELITRONIC POWER PRODUCTION
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X travel: 490 mm
Y travel: 320 mm
Z travel: 660 mm
C axis swivel range: ±200°
Control: HMC 500 WWM Walter
Tool length capture (A): 175 mm ISO 50
Max spindle speed: 7,000 rpm
Center height: 145 (190) mm
Max workpiece diameter: 320 mm
Max workpiece length: 320 (350) mm
Resolution: 0.0001 mm
Spindle diameter: 80 mm
Max grinding wheel diameter: 200 mm
Grinding spindle drive power: 24 kW
Max torque: 6 Nm
Total power requirement: 35 kVA
Machine weight: 4.65 t
Machine dimensions: 3.6 x 2.5 x 2.95 m
Includes pallet loading station
Includes documents
