Walter Helitronic Power
EUROPE (Western and Northern)

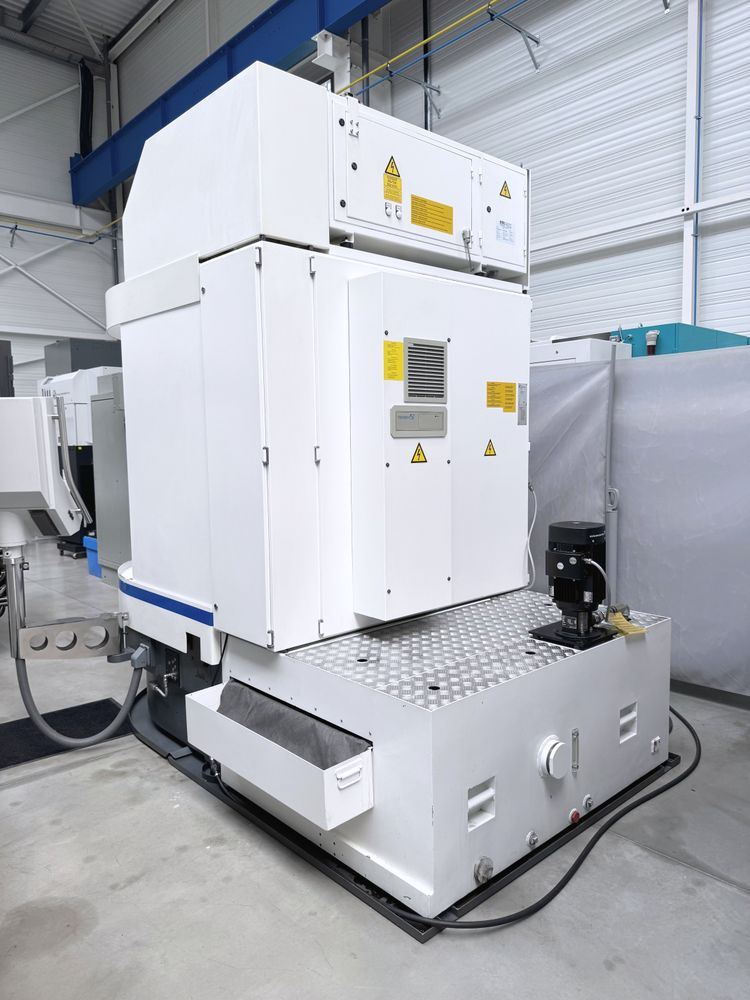

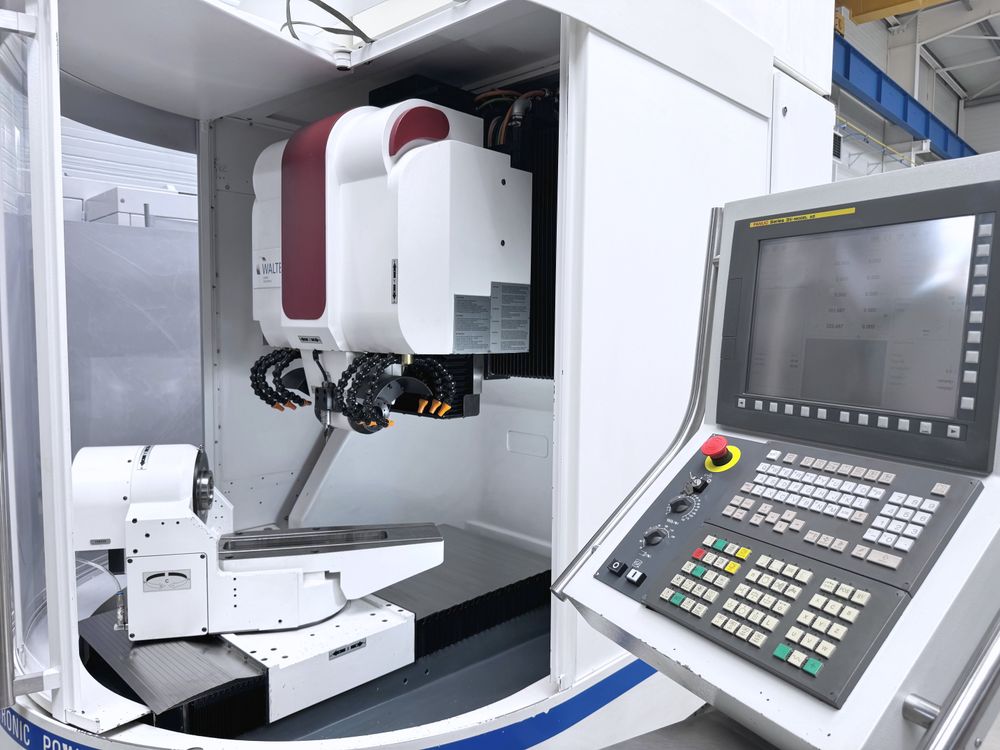

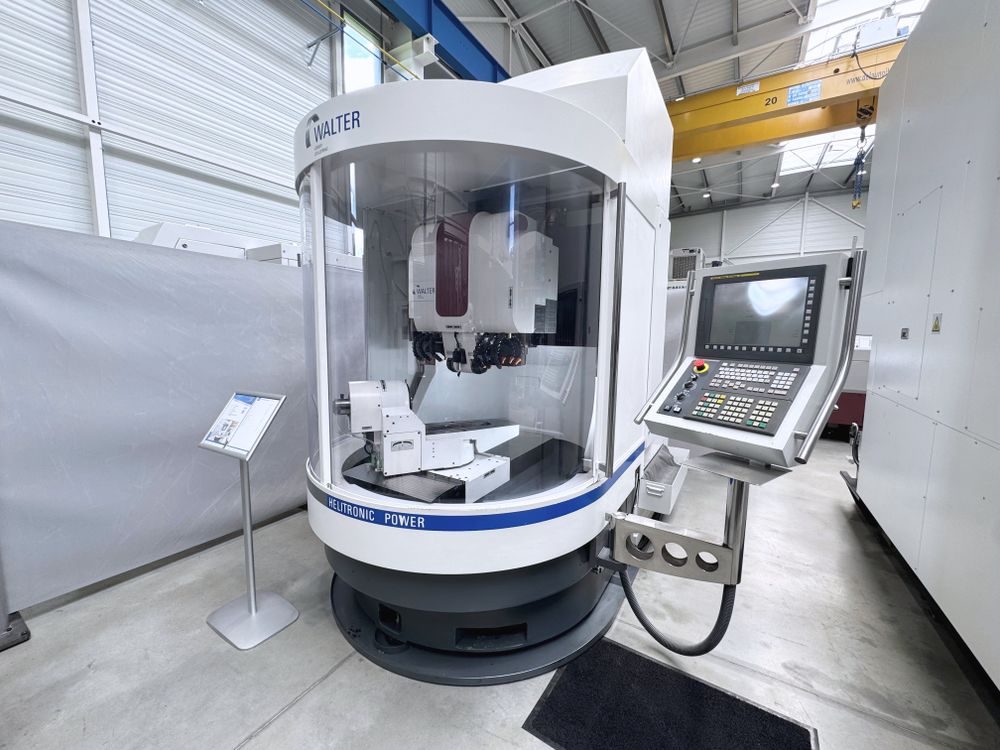

CNC Tool grinding machine WALTER Helitronic Power
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2008

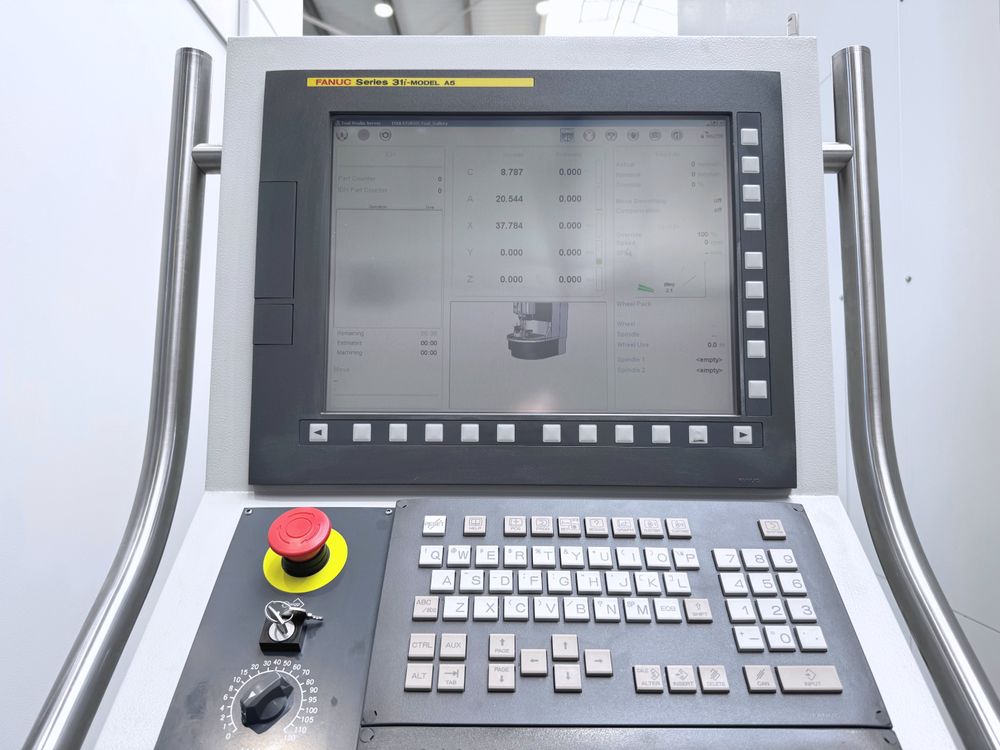

CNC control: FANUC Series 31i-model A5
Software installed: Tool Studio 3
Number of axes: 5
Height of centers: 145 / 190 [mm]
Stroke X axis: 470 [mm]
Rapid traverse rate X axis: 15000 [mm/min]
Stroke Y axis: 330 [mm]
Rapid traverse rate Y axis: 15000 [mm/min]
Stroke Z axis: 660 [mm]
Rapid traverse rate Z axis: 15000 [mm/min]
Stroke A axis: 360 [°]
Stroke C axis: +/- 200 [°]
Max. workpiece lenght : end face grinding: 280 [mm]
Max. grinding lenght: 350 [mm]
Max. grinding diameter: 320 [mm]
Max. grinding wheel speed: 9500 [rpm]
Grinding spindle motor power: 11.5 [kW]
Max. diameter grinding wheel: 200 [mm]
Number of hours under power: 8948 [h]
Coolant pump pressure: 7 [bar]
Collant pump flow rate: 120 [l/min]
Lubrication tank capacity: 400 [l]
Supply voltage: 400 [V]
Total power required: 25 [kVA]
Weight: 4500 [Kg]
INCLUDED EQUIPMENT:
x1 TOOLSTUDIO 3 software

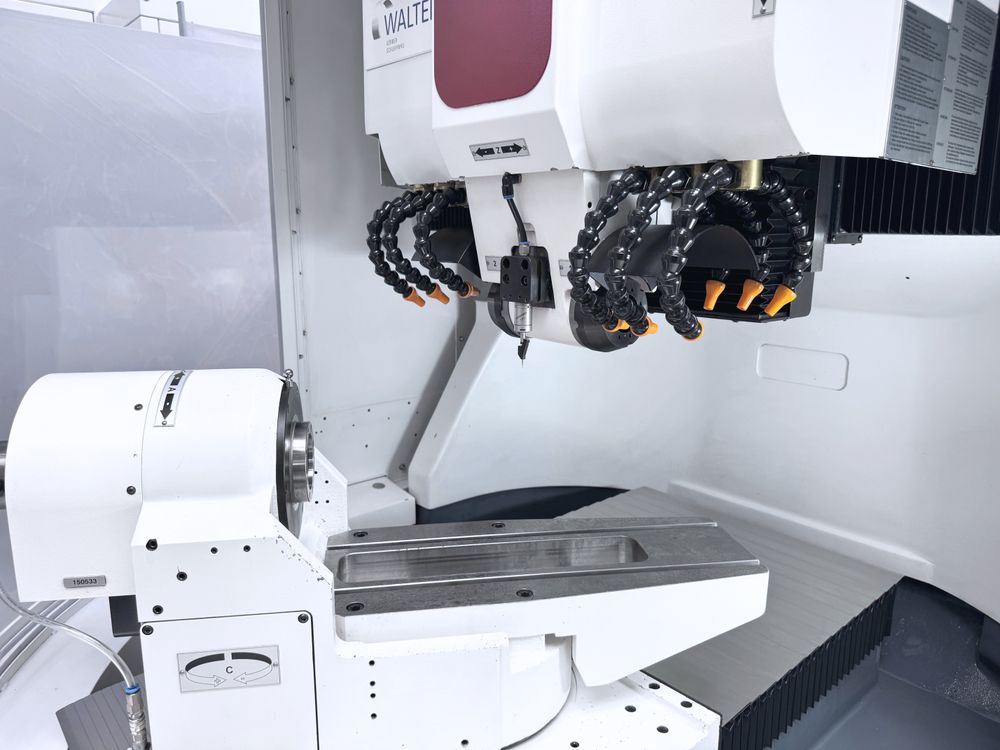

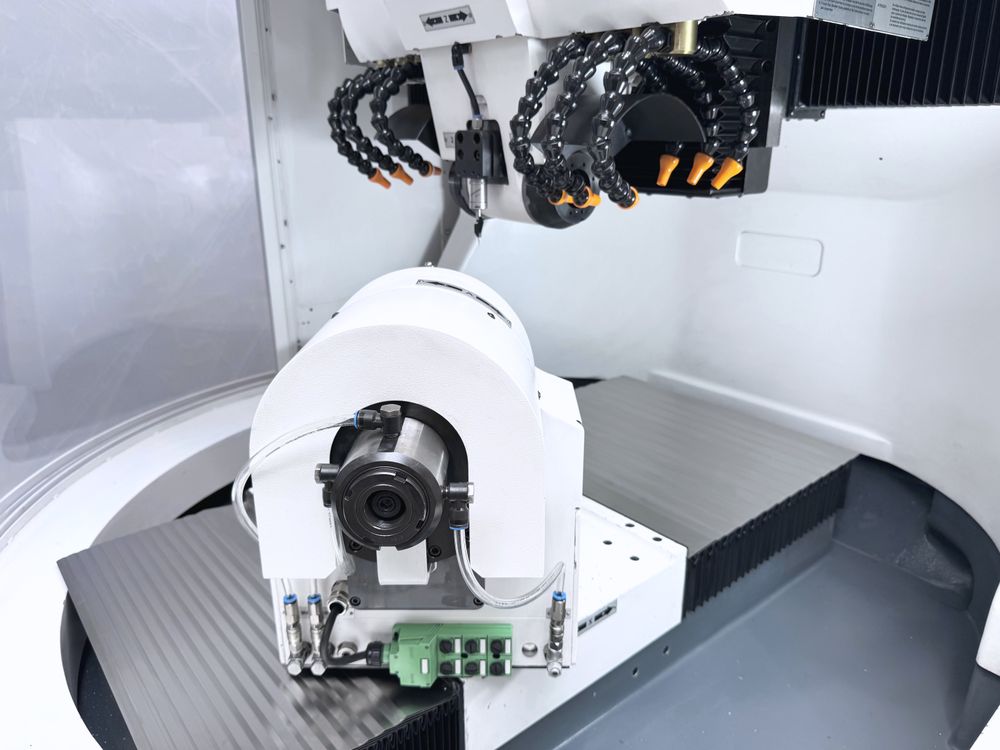

x1 direct-drive A axis (Hollow Shaft)
x1 automatic tool clamping system

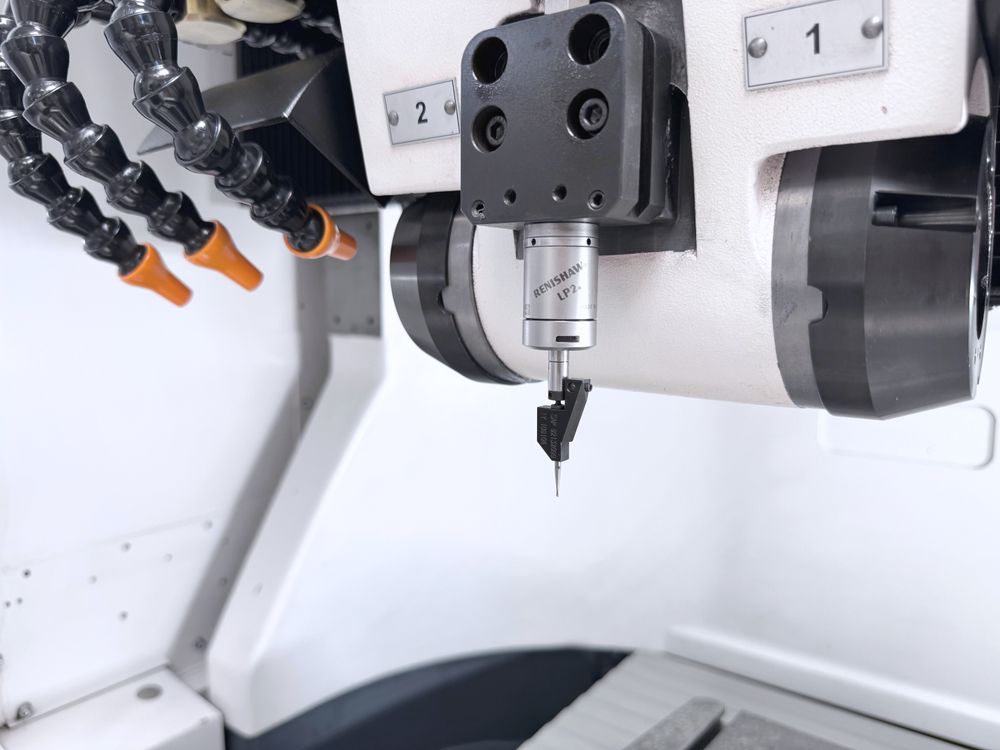

x1 RENISHAW LP2 part probe
x1 DSL Air Technology type AES-GAMMA 30 mist extractor
x1 lubrication tank + paper filtration system
x1 GRUNDFOS coolant pump
x35 grinding wheel holders (equipped with CBN wheels)
x22 ISO50 attachments
x1 SCHUNK collet holder
x22 collets
x1 NIKKEN collet holder
x13 NIKKEN collets

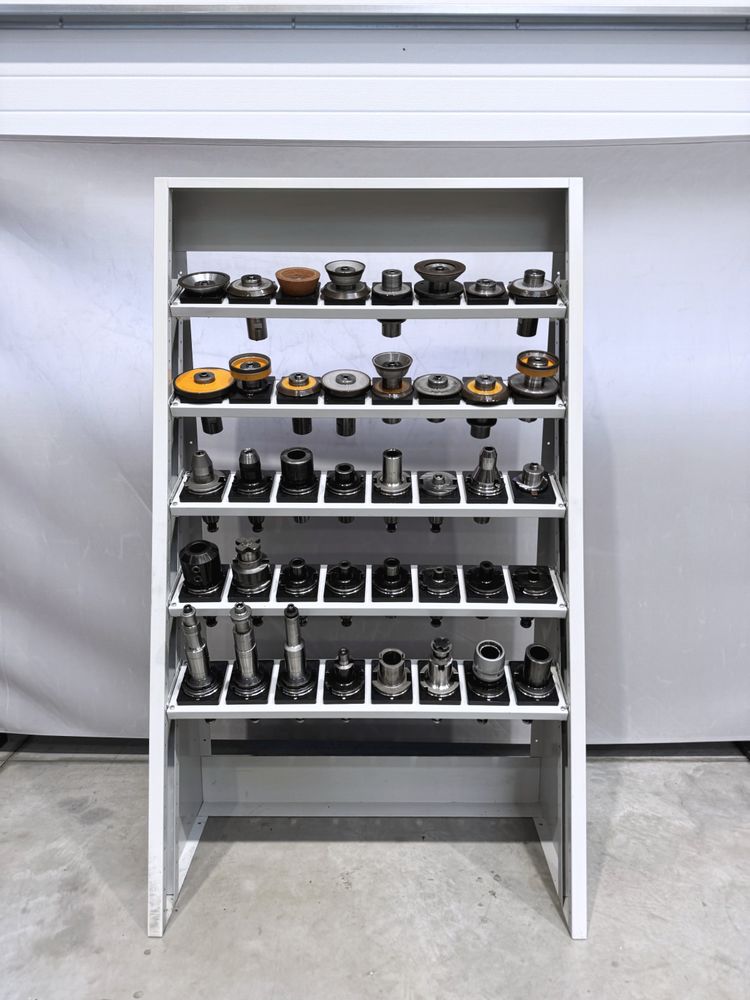

x1 metal rack for grinding wheel holders and ISO50 attachments
1x ISO50 calibration mandrel intended for axis calibration
1x calibration disc intended for axis calibration
x1 set of service wrenches
Various technical manuals
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
Machine for sharpening tools, milling cutters, taps, and drills.
