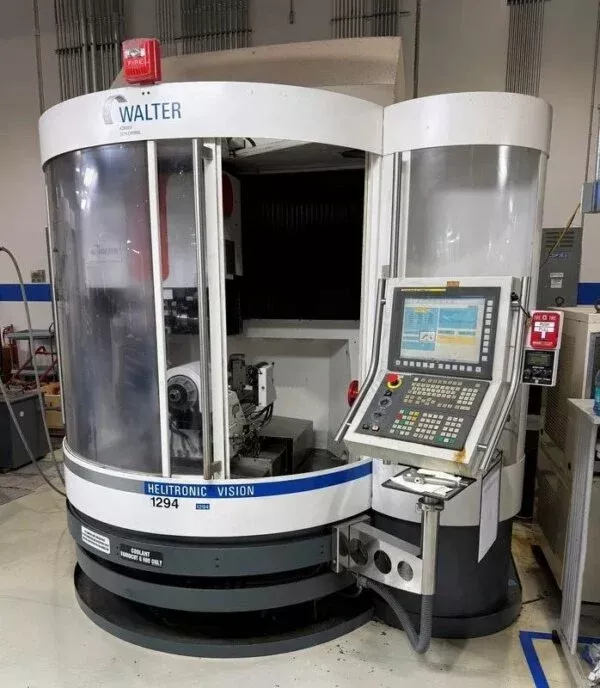

Walter HELITRONIC VISION W

X-axis travel: 18.89"
Y-axis travel: 12.59"
Z-axis travel: 27.56"
Rapid traverse speed (X/Y/Z): 1,968.5 IPM
C-axis: ±200°
A-axis: 750 RPM
Linear resolution: 0.0001 mm
Radial resolution: 0.0001°
Tool diameter minimum: 0.1181"
Tool diameter maximum: 12.6"
Max workpiece length for peripheral grinding: 14.56"
Max workpiece length for end face grinding: 11.81"
Max workpiece weight: 110 lbs
Max grinding wheel diameter: 7.87"
Grinding spindle speed: 0–10,500 RPM
Spindle drive: Motor direct drive
Motor power: 40.2 HP
Tool holder: HSK 50
Tool changer positions: 36
Electrics: 400V / 3Ph / 50/60Hz
Machine dimensions: 110" L x 103" W x 115" H
Oil cooler dimensions: 42" L x 32" W x 60" H
Coolant system dimensions: 39" L x 70" W x 70" H
Filter housing dimensions: 25" L x 18" W x 27" H
Transformer dimensions: 28" L x 20" W x 26" H
Machine weight: 15,500 lbs

Fanuc Series 31i Model A5 CNC control
Turmoil OCO-250R closed loop oil cooler
Ebbco PMF-30000-EC coolant filtration system
Top-mounted mist collector
Wheel dresser
36-position tool changer
Transformer
Helitronic Tool Studio programming software
Renishaw LP2 probe system
Clamping system
Miscellaneous grinding wheels
Manuals
