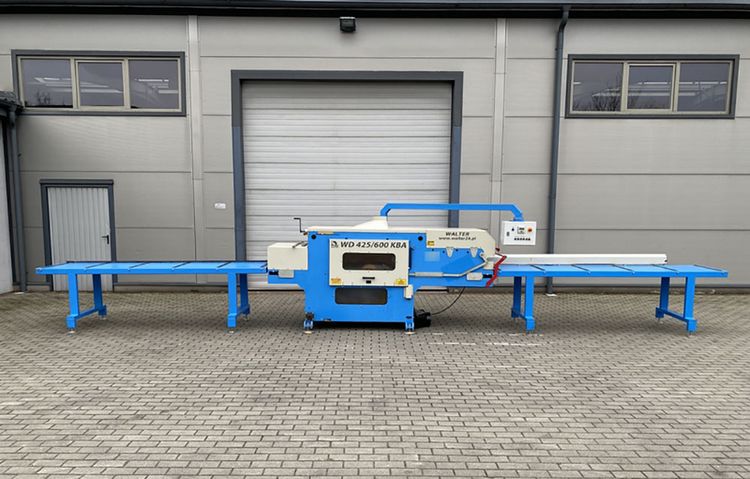

Walter WD 425/600 KBA Multisaw

The WD 425/600 single-shaft multi-saw is used for cutting boards and strips from stockpiles and can also be used as a board edger.
The machine's stable and durable construction ensures years of trouble-free operation.
The machine's optional swing guard allows for cutting stockpiles of unlimited width.
Multi-saws of this type are used in large industrial plants as well as in small woodworking shops.

Technical parameters:
- Min. cutting thickness: 50mm
- Max. cutting thickness: 150mm
- Max. cutting width: 600mm
- Min. cutting length: 1200mm
- Lower spindle diameter: 70mm
- Max. saw blade diameter: 425mm
- Spindle motor power: 30kW
- Feed drive motor power: 2.2kW
- Infeed roller table with dimensions (W/L): 700 x 3000mm, roller length: 640mm
- Outfeed roller table with dimensions (W/L): 700 x 3000mm, roller length: 640mm
- Spindle motor speed: 1420rpm
- Feed motor speed: 1420rpm rpm

- Upper sawdust outlet diameter: 200 mm
- Lower sawdust outlet diameter: 200 mm
- Mains voltage: 3x400V, 50Hz

- Overall dimensions:
- Length: 2980 mm
- Width: 1250 mm
- Height: 1670 mm
