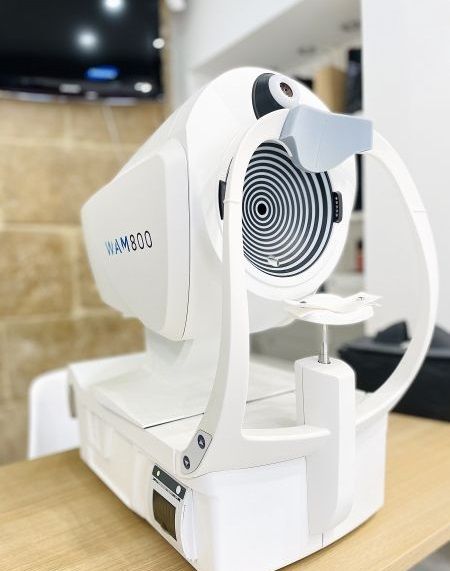

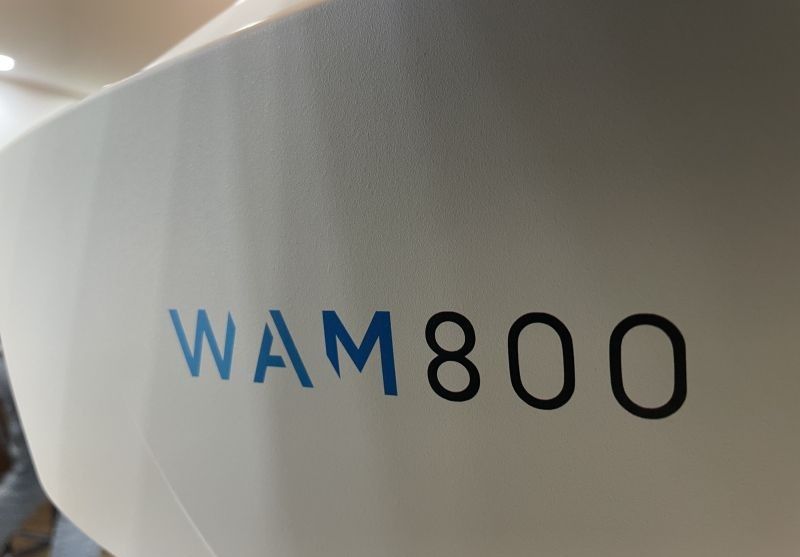

WAM 800 Autoref topographer keratometer tonometry

Used Wam800 (4 years old), very little use and in excellent,
almost new condition

Unique device for 9 measurements
• Objective refraction
• Pupillometry
• Keratometry
• Topography
• Aberrometry
• Accommodation
• Tonometry*
• Pachymetry*
• Retroillumination*
* Functions for medical use only

Technical specifications of this wavefront analyzer:
Refraction & aberration (wavefront)
Sphere: -20D to +20D
Cylinder: OD to +8D
Axis: 0 to 180°
Minimum pupil diameter: 2mm
Number of points measured: 1,500
Acquisition time: 0.25 seconds
Technology: Shark-Hartmann
Corneal topography
Number of Placido rings: 24
Number of points Measured: 6144
Number of points analyzed: over 100,000
Corneal area covered at 43D (o): 0.33 mm to over 10 mm
Measured diopter range: 1 to 100
Repeatability: 0.02 D
Technology: Placido Discs
Anterior Segment
Pachymetry measurement: 150-1300 µm (#1 micron)
IC measurement / IC accuracy: 0°-60% / 0.1°
Pupil illumination: 455 nm Blue Light
Technology: Scheimpflug
Measurement: 1 mmHg to 50 mmLg
