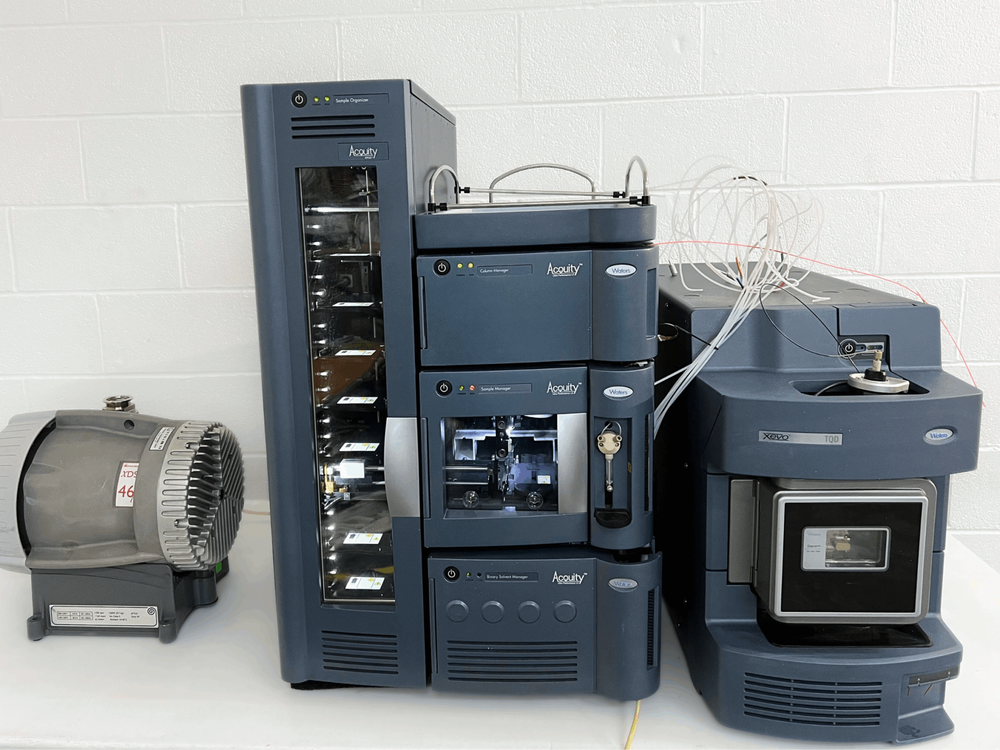

Waters Acquity UPLC with Xevo TQD Mass Spectrometer

This Waters Acquity UPLC system includes:
Xevo TQD Mass Spectrometer
RADAR data acquisition for highly specific quantitative data on target compounds
Allows visualisation of all components in the sample matrix
Product Ion Confirmation (PIC) scanning acquisition
T-Wave collision cell technology for rapid, high quality data processing
Purposefully engineered for simplicity
Universal ion source architecture, to suit a broad range of applications

Binary Solvent Manager
Highly accurate flow rate between 0.01 mL/min to 2.0 mL/min
Effective delay volume and mixing for quiet, stable baselines
Intelligent intake valves to eliminate pressure variations

Sample Manager
Injects the samples from microtiter plates into flow stream
Maintains samples at any temperature between 4º to 40º C (in 25º C or less ambient conditions)

Sample Organiser
Stores plated and transfers them to and from the sample manager, automating and optimising throughput

Column Manager
Sits on top of the sample manager, for optimised footprint
Accommodates any Waters column up to 4.6 mm ID and 150 mm long
Column rests in a U-shaped tray that swivels outward to receive the column from either side

Edwards XDS 46i Dry Scroll Vacuum Pump
Maximum pumping speed 40 m³/hour
Ultimate vacuum 0.05 mbar
Bearing shield ensures separation between process gases and bearing lubrication
Smart motor drive with pump overload protection
High flow gas ballast system
Simple single-sided scroll design for easy maintenance

PowerVar Security Plus Power Supply
Input: 100-240 VAC, 50/60 Hz
Output: 100-240 VAC, 50/60 Hz
Battery Recharge Time: 8 hours to 90%
Communications: RS-232, USB, DB-9 Contacts
