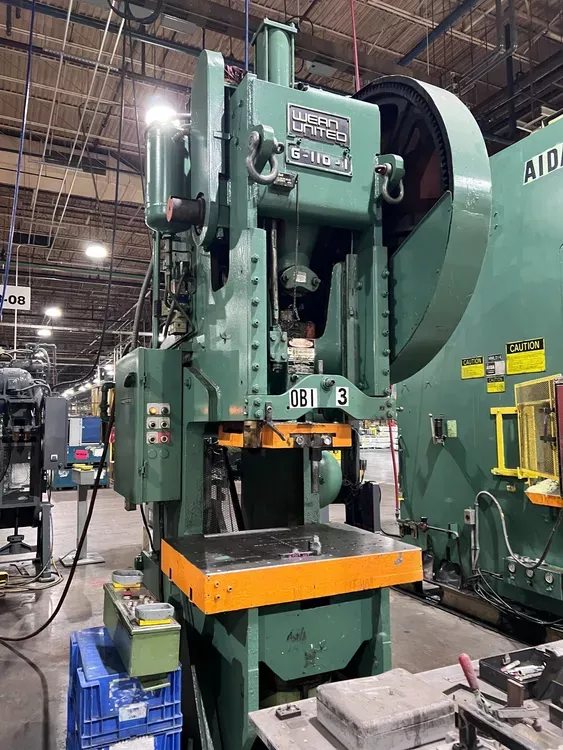

Wean UNITED G-110-1 110 ton

Press force: 110 ton
Bed size left-right: 36 in
Bed size front-back: 24 in
Slide area left-right: 21 in
Slide area front-back: 22 in
Stroke length: 8 in
Shut height: 17 in
Slide adjustment: 4 in
Stroke rate: 35 strokes/min
Bolster plate size: 36 in x 24 in
Bolster plate thickness: 4 in
Distance floor to top of bed: 37 in
Distance floor to top of bolster: 41 in
Overall dimensions left-right: 7.5 ft
Overall dimensions front-back: 9 ft
Overall height: 12 ft

Features / options / equipment
OBI gap frame press
Single crank design
Cushion system
Air clutch and brake
