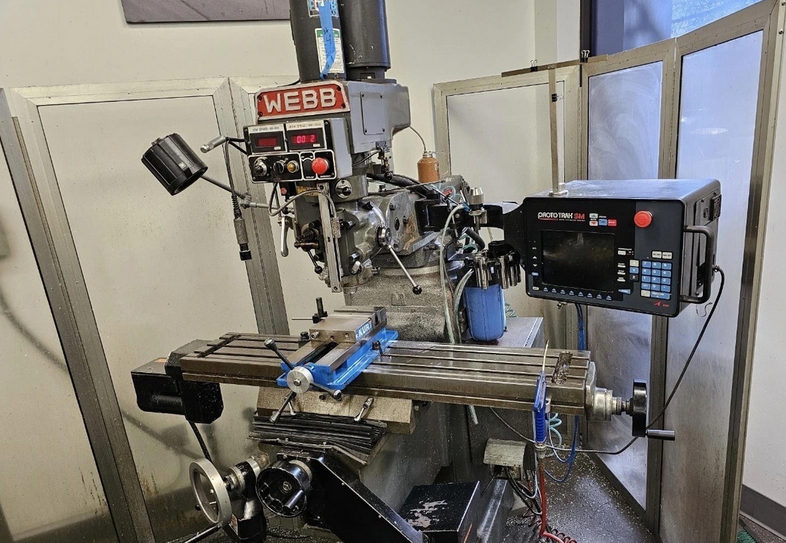

Webb 3VKF Vertical 4,500 RPM

X-Axis Travel: 32″
Y-Axis Travel: 14″
Z-Axis Travel: 15″
Quill Travel: 4″
Ram Travel: 22″
Control: ProtoTRAK SM (2012)
Quill Scale Through Control
One Button Quick Stop
Table Size: 10″ x 50″
Spindle Speed: 60 – 4,500 RPM
Spindle Motor: 3 HP
Spindle Taper: R-8
Quill Diameter: 3.375″
Quill Feed Rate: 0.0015″ / 0.003″ / 0.006″ per rev
Drilling Capacity: 0.75″
Boring Capacity: 6″
Milling Capacity: 2.0 in³/min
Maximum Work Load: 850 lbs
Spindle Nose to Table: 2.75″ – 17.75″
Spindle Center to Column: 5″ – 27″
Kurt Power Lock Draw Bar
Frequency Controlled Speed Ranges
